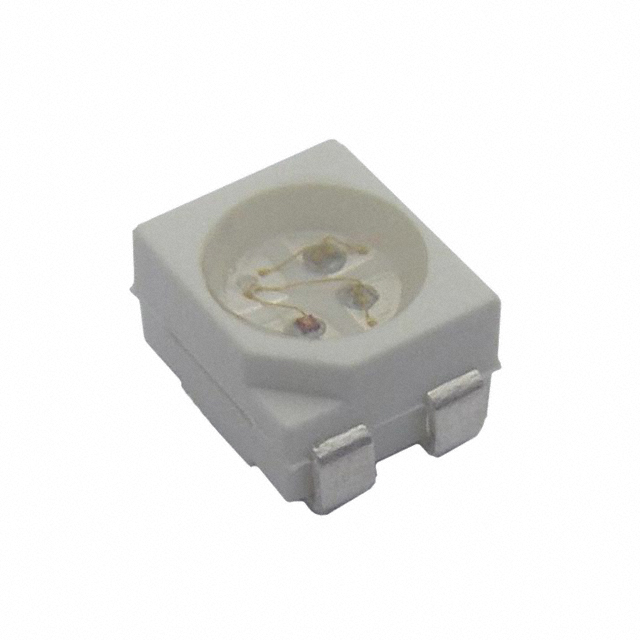

SMP4-BC-RB
LED BLUE/RED CLEAR 4PLCC SMDManufacturer: Bivar Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More
Bivar Inc. SMP4-BC-RB is a dual-color (Blue/Red) LED indication component. This surface mount device, packaged in a 4-PLCC, features independent control of its blue and red emitters. The blue LED emits at a dominant wavelength of 466nm with a typical forward voltage of 3.3V and a luminous intensity of 50mcd at 20mA. The red LED operates with a dominant wavelength of 640nm, a typical forward voltage of 1.85V, and a luminous intensity of 36mcd at 20mA. The component’s lens is clear, colorless, and round with a flat top, measuring 2.40mm in diameter. With dimensions of 3.20mm in length and 2.80mm in width, and a maximum height of 1.85mm, it offers a 120° viewing angle. This component is supplied on tape and reel. Its capabilities make it suitable for applications in industrial automation, medical equipment, and general electronic instrumentation requiring distinct visual feedback.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-PLCC |
| Color | Blue, Red |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 50mcd Blue, 36mcd Red |
| Configuration | Independent |
| Voltage - Forward (Vf) (Typ) | 3.3V Blue, 1.85V Red |
| Lens Color | Colorless |
| Current - Test | 20mA Blue, 20mA Red |
| Viewing Angle | 120° |
| Height (Max) | 1.85mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 466nm Blue, 640nm Red |
| Supplier Device Package | 4-PLCC |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
