SMP2-UPGC
LED GREEN CLEAR 2PLCC SMDManufacturer: Bivar Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More

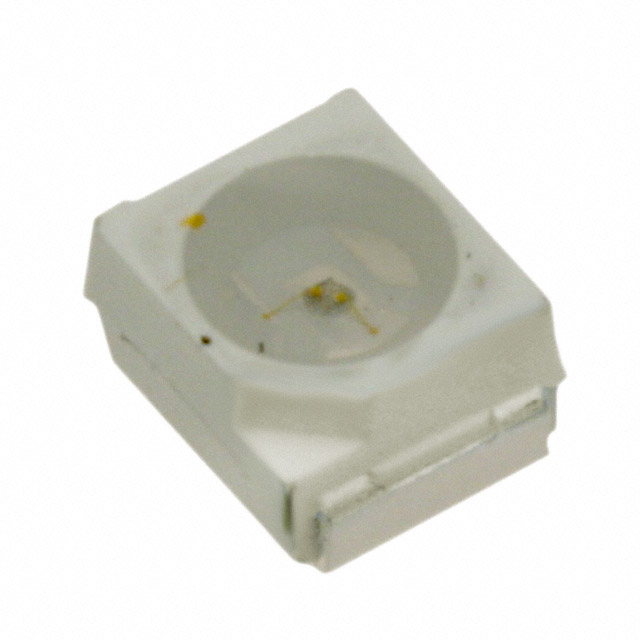

Bivar Inc. SMP2-UPGC is a green, 525nm LED designed for surface mount applications. This discrete indicator component features a 2-PLCC package with a 3.20mm L x 2.80mm W footprint and a maximum height of 2.00mm. The LED offers a typical forward voltage of 3.3V and requires 20mA for a test current, producing a luminous intensity of 850mcd. Its clear lens, with a round, flat-top style, provides a wide viewing angle of 120°. This component is suitable for various indication applications across industrial, consumer electronics, and automotive sectors. The SMP2-UPGC is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-PLCC |
| Color | Green |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 850mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.3V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 120° |
| Height (Max) | 2.00mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 525nm |
| Supplier Device Package | 2-PLCC |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | - |
