SMP2-SUWD
LED WHITE DIFFUSED 2PLCC SMDManufacturer: Bivar Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More

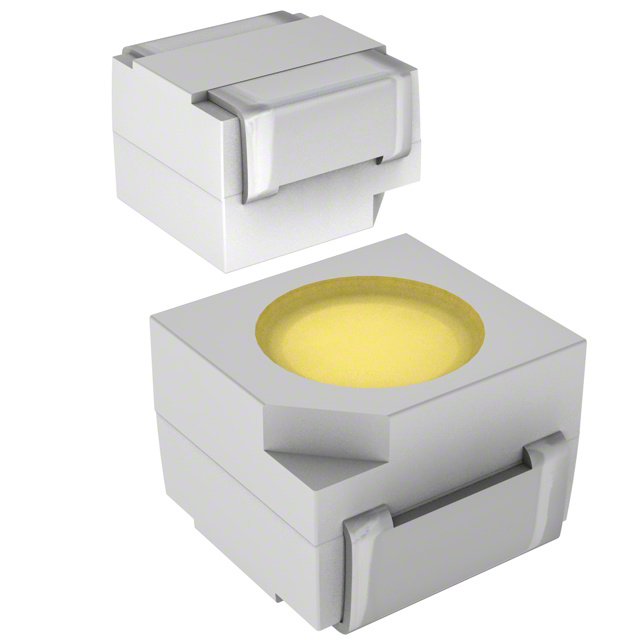

Bivar Inc. SMP2-SUWD is a white diffused 2-PLCC surface mount LED designed for reliable indication. This discrete LED offers a typical forward voltage of 3.2V and operates at a test current of 20mA, producing a millicandela rating of 2650mcd. The component features a round with flat top lens style, diffused for uniform light output, and a 120° viewing angle. Its compact dimensions of 3.20mm L x 2.80mm W and a maximum height of 2.00mm make it suitable for space-constrained applications. The LED is supplied in a 2-PLCC package on tape and reel (TR). This component is commonly utilized in industrial control, medical devices, and consumer electronics where clear visual feedback is critical.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-PLCC |
| Color | White |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 2650mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Lens Color | Yellow |
| Current - Test | 20mA |
| Viewing Angle | 120° |
| Height (Max) | 2.00mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | - |
| Supplier Device Package | 2-PLCC |
| Lens Transparency | Diffused |
| Lens Style | Round with Flat Top |
| Lens Size | - |
