SMP2-PGC
LED GREEN CLEAR 2PLCC SMDManufacturer: Bivar Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More

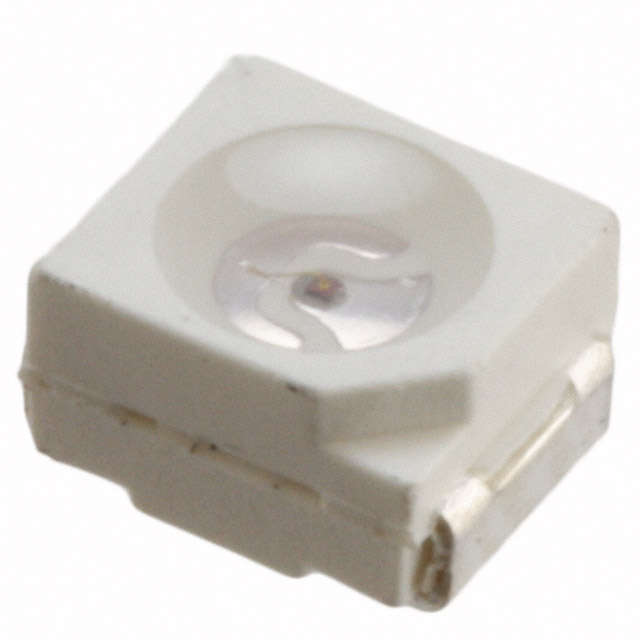

Bivar Inc. SMP2-PGC is a green LED, part of the LED Indication - Discrete category. This surface mount component features a 2-PLCC package with dimensions of 3.20mm L x 2.80mm W and a maximum height of 2.00mm. It emits light at a dominant wavelength of 557nm with a typical forward voltage of 2V and a test current of 20mA, providing a luminous intensity of 11mcd. The clear, colorless lens has a round shape with a flat top, offering a wide viewing angle of 120°. This component is supplied on a Tape & Reel (TR) for automated assembly and is commonly utilized in industrial automation, medical equipment, and consumer electronics for status indication.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-PLCC |
| Color | Green |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 11mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 120° |
| Height (Max) | 2.00mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 557nm |
| Supplier Device Package | 2-PLCC |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | - |
