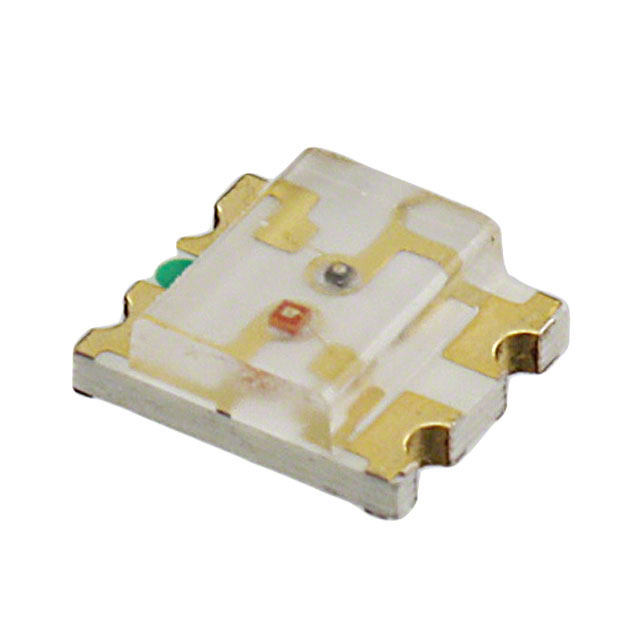

SM1210RGB
LED RGB CLEAR 1210 SMDManufacturer: Bivar Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More
Red, Green, Blue (RGB) 631nm Red, 525nm Green, 470nm Blue LED Indication - Discrete 2.1V Red, 3.1V Green, 2.9V Blue 1210 (3225 Metric)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 1210 (3225 Metric) |
| Color | Red, Green, Blue (RGB) |
| Size / Dimension | 3.20mm L x 2.70mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 72mcd Red, 285mcd Green, 72mcd Blue |
| Configuration | Common Anode |
| Voltage - Forward (Vf) (Typ) | 2.1V Red, 3.1V Green, 2.9V Blue |
| Lens Color | Colorless |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 130° |
| Height (Max) | 1.10mm |
| Wavelength - Peak | 645nm Red, 523nm Green, 468nm Blue |
| Wavelength - Dominant | 631nm Red, 525nm Green, 470nm Blue |
| Supplier Device Package | 1210 |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.70mm x 2.00mm |
