SM1204SPGC
LED GREEN CLEAR 1204 SMD R/AManufacturer: Bivar Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More

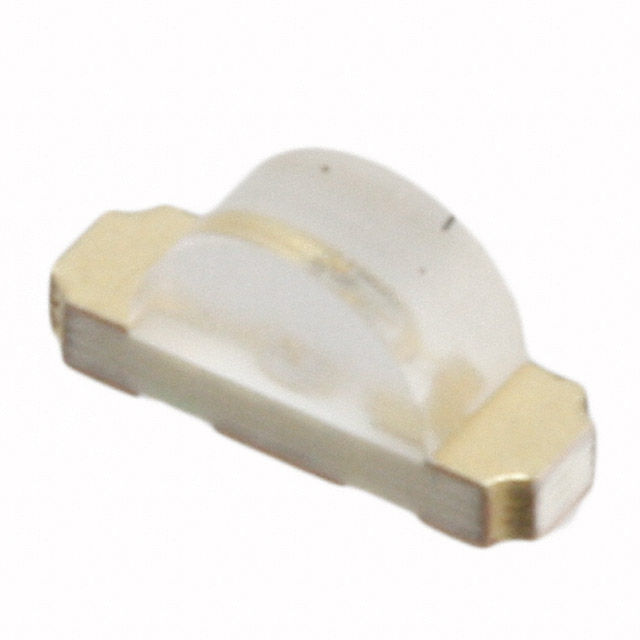

Bivar Inc. SM1204SPGC is a green, clear lens, 1204 (3210 Metric) surface mount LED designed for right-angle mounting. This discrete LED operates with a typical forward voltage of 3.3V and a test current of 20mA, producing a dominant wavelength of 525nm. The SM1204SPGC features a respectable millicandela rating of 285mcd and a wide viewing angle of 110°. Its dimensions are 3.20mm L x 1.00mm W, with a maximum height of 1.00mm. The component comes supplied in Tape & Reel (TR) packaging, suitable for high-volume automated assembly. Applications for this component include industrial automation, medical equipment, and consumer electronics where reliable visual status indication is critical.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 1204 (3210 Metric) |
| Color | Green |
| Size / Dimension | 3.20mm L x 1.00mm W |
| Mounting Type | Surface Mount, Right Angle |
| Millicandela Rating | 285mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.3V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 110° |
| Height (Max) | 1.00mm |
| Wavelength - Peak | 523nm |
| Wavelength - Dominant | 525nm |
| Supplier Device Package | 1204 |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Domed Top |
| Lens Size | 2.00mm x 1.00mm |
