SM0603UOC
LED ORANGE CLEAR 0603 SMDManufacturer: Bivar Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More

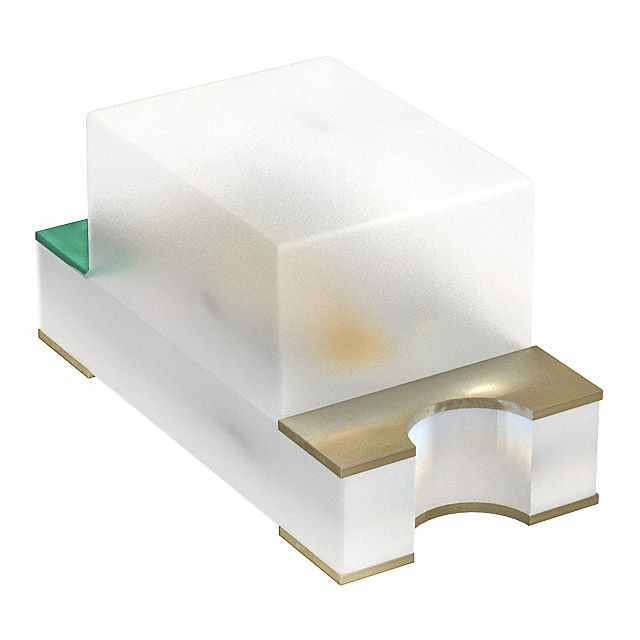

Bivar Inc. SM0603UOC is a discrete Orange LED designed for surface mount applications. This 0603 (1608 Metric) package component features a clear, colorless lens with a flat top rectangle style, measuring 1.60mm x 0.80mm with a maximum height of 0.80mm. It operates with a typical forward voltage of 2.1V and a test current of 20mA, producing a millicandela rating of 80mcd. The dominant wavelength is 625nm, with a peak wavelength of 630nm. This LED offers a wide viewing angle of 130°. It is supplied in Tape & Reel (TR) packaging. This component is commonly specified for industrial automation, consumer electronics, and medical device applications.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0603 (1608 Metric) |
| Color | Orange |
| Size / Dimension | 1.60mm L x 0.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 80mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 130° |
| Height (Max) | 0.80mm |
| Wavelength - Peak | 630nm |
| Wavelength - Dominant | 625nm |
| Supplier Device Package | 0603 |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.00mm x 0.80mm |
