R50YLW-F-0160
LED YELLOW CLEAR T/HManufacturer: Bivar Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More

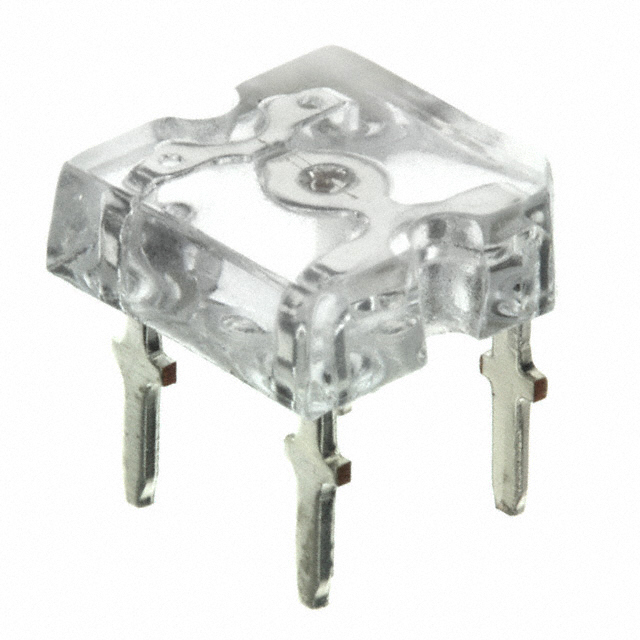

Bivar Inc. Orca R series through-hole LED, part number R50YLW-F-0160. This yellow LED emits at a dominant wavelength of 591nm with a typical forward voltage of 2.4V and a test current of 50mA, producing 600mcd luminous intensity. The component features a clear, colorless square lens with a flat top, measuring 7.60mm in length and width, and a maximum height of 4.40mm. It is housed in a 4-DIP (0.200", 5.08mm) package and offers a wide 160° viewing angle. This discrete indicator is commonly utilized in industrial control systems, consumer electronics, and medical equipment requiring reliable visual feedback. Supplied in tube packaging.
Additional Information
Series: Orca RRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 4-DIP (0.200"", 5.08mm) |
| Color | Yellow |
| Size / Dimension | 7.60mm L x 7.60mm W |
| Mounting Type | Through Hole |
| Millicandela Rating | 600mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.4V |
| Lens Color | Colorless |
| Current - Test | 50mA |
| Viewing Angle | 160° |
| Height (Max) | 4.40mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 591nm |
| Supplier Device Package | - |
| Lens Transparency | Clear |
| Lens Style | Square with Flat Top |
| Lens Size | 7.60mm |
