R50RED-F-0160
LED RED CLEAR T/HManufacturer: Bivar Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More

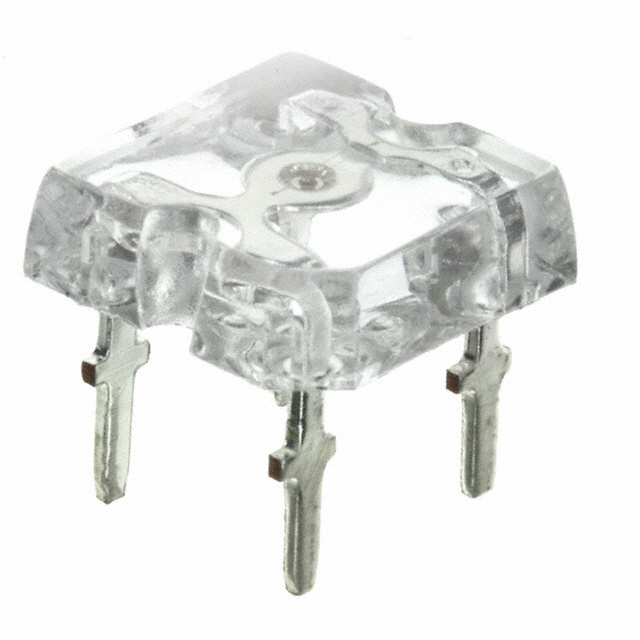

Bivar Inc. Orca R series LED, part number R50RED-F-0160, is a through-hole mounted discrete indicator with a red 628nm dominant wavelength and a typical forward voltage of 2.4V at 50mA test current. This component features a clear, colorless lens with a square, flat-top design, providing a wide 160° viewing angle. The illumination intensity is rated at 600mcd. The package is a 4-DIP with 0.200" (5.08mm) lead spacing, measuring 7.60mm in length and 7.60mm in width, with a maximum height of 4.40mm. Commonly utilized in industrial automation, consumer electronics, and medical devices for status indication.
Additional Information
Series: Orca RRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 4-DIP (0.200"", 5.08mm) |
| Color | Red |
| Size / Dimension | 7.60mm L x 7.60mm W |
| Mounting Type | Through Hole |
| Millicandela Rating | 600mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.4V |
| Lens Color | Colorless |
| Current - Test | 50mA |
| Viewing Angle | 160° |
| Height (Max) | 4.40mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 628nm |
| Supplier Device Package | - |
| Lens Transparency | Clear |
| Lens Style | Square with Flat Top |
| Lens Size | 7.60mm |
