R50RED-4-0045
LED RED CLEAR T/HManufacturer: Bivar Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More

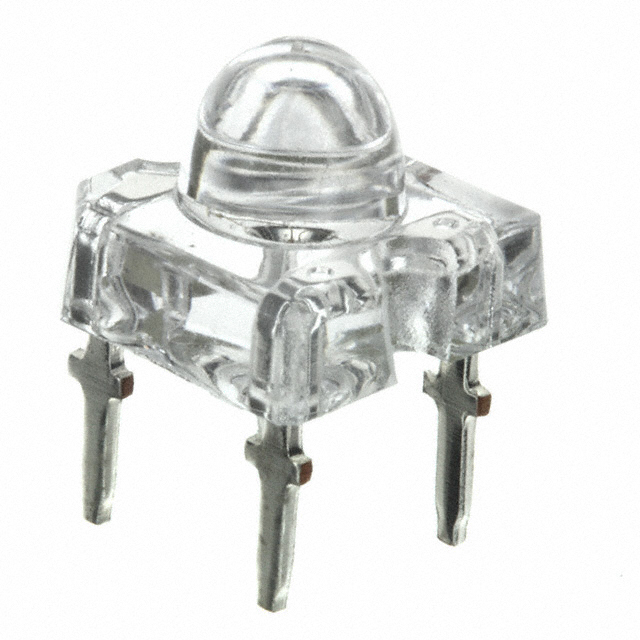

Bivar Inc. Orca R series through-hole LED, part number R50RED-4-0045, offers a red diffused light with a dominant wavelength of 628nm. This discrete indicator features a clear, round, domed lens with a 45° viewing angle and a forward voltage of 2.4V at a test current of 50mA. It achieves a luminous intensity of 6000mcd. The component is housed in a 4-DIP package with 0.200" (5.08mm) spacing, measuring 7.60mm L x 7.60mm W with a maximum height of 7.80mm. This component is suitable for applications in industrial automation and consumer electronics. It is supplied in tube packaging.
Additional Information
Series: Orca RRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 4-DIP (0.200"", 5.08mm) |
| Color | Red |
| Size / Dimension | 7.60mm L x 7.60mm W |
| Mounting Type | Through Hole |
| Millicandela Rating | 6000mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.4V |
| Lens Color | Colorless |
| Current - Test | 50mA |
| Viewing Angle | 45° |
| Height (Max) | 7.80mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 628nm |
| Supplier Device Package | - |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 4.60mm Dia |
