R20GRN-F-0160
LED GREEN CLEAR T/HManufacturer: Bivar Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More

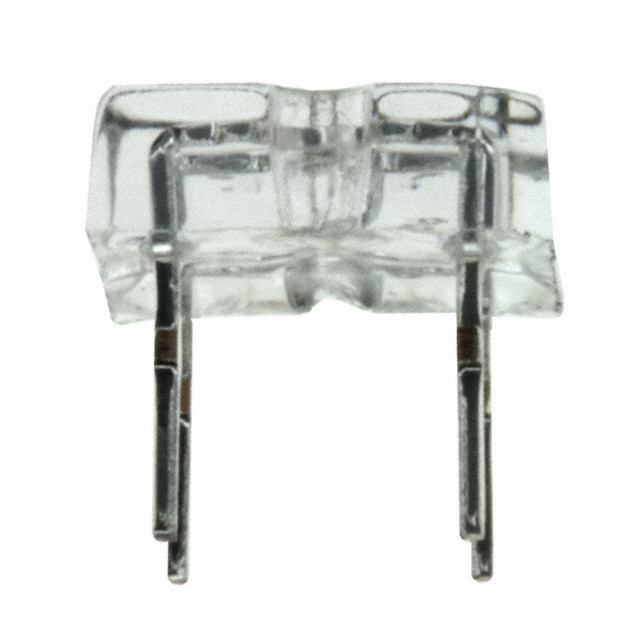

Bivar Inc. Orca R series through-hole LED, R20GRN-F-0160, offers a 521nm dominant wavelength green light output with a typical forward voltage of 3.4V at 20mA test current. This discrete indicator features a clear, square lens with a flat top, measuring 7.60mm x 7.60mm with a maximum height of 4.40mm. The component is housed in a 4-DIP (0.200", 5.08mm) package, providing a wide 160° viewing angle and a luminous intensity of 1000mcd. Commonly utilized in industrial automation, medical devices, and consumer electronics for status indication.
Additional Information
Series: Orca RRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 4-DIP (0.200"", 5.08mm) |
| Color | Green |
| Size / Dimension | 7.60mm L x 7.60mm W |
| Mounting Type | Through Hole |
| Millicandela Rating | 1000mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.4V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 160° |
| Height (Max) | 4.40mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 521nm |
| Supplier Device Package | - |
| Lens Transparency | Clear |
| Lens Style | Square with Flat Top |
| Lens Size | 7.60mm |
