1.8RCL
LED RED CLEAR 1.8MM T/HManufacturer: Bivar Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More

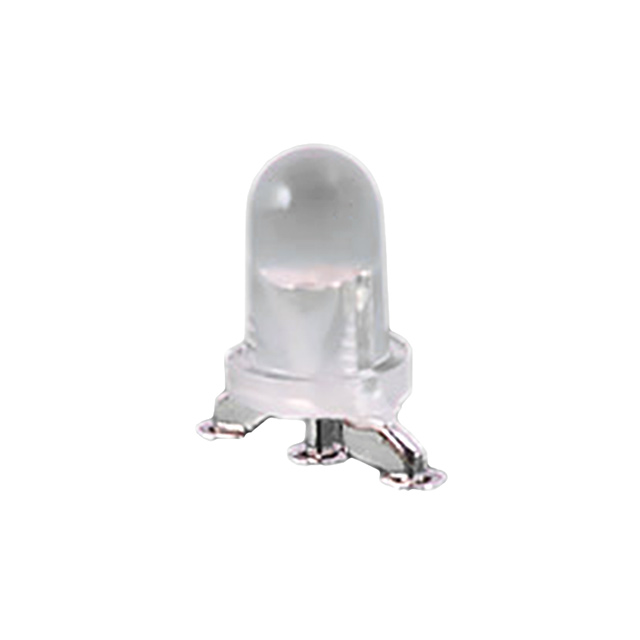

Bivar Inc. offers the 1-8RCL, a discrete radial LED component designed for reliable illumination. This through-hole mounted LED features a 1.8mm diameter clear lens with a domed top, providing a 35° viewing angle. It emits a red light with a typical forward voltage of 2.1V and a forward current of 2mA, producing 1mcd of luminous intensity. The peak wavelength is 700nm. This component is suitable for various indication applications across industries such as industrial automation, consumer electronics, and medical devices. The part is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 1mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Lens Color | Colorless |
| Current - Test | 2mA |
| Viewing Angle | 35° |
| Height (Max) | 3.50mm |
| Wavelength - Peak | 700nm |
| Wavelength - Dominant | - |
| Supplier Device Package | 1.8mm Discrete LED |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 1.80mm Dia |
