L2-TGN1-F
LED MOD L2 XLAMP STARBRD 4000KManufacturer: Bivar Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

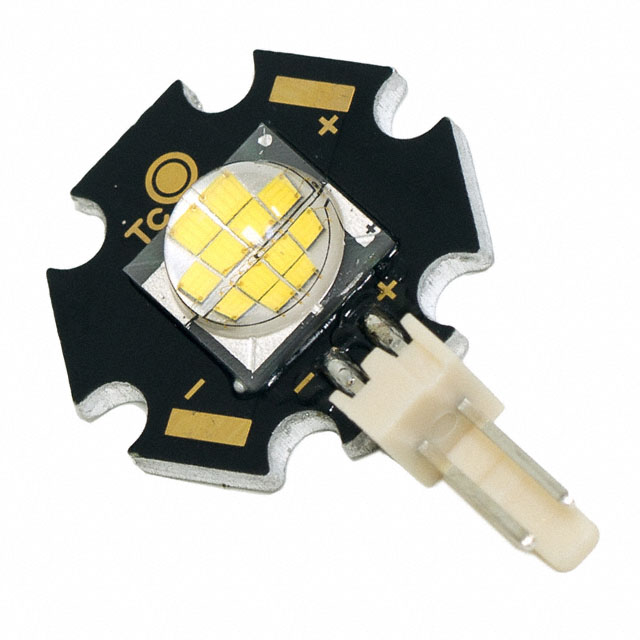

Bivar Inc. L2, XLamp® XT-G series LED module, part number L2-TGN1-F, offers a neutral white illumination with a correlated color temperature of 4000K. This LED module features a starboard configuration and a domed lens, providing a 120° viewing angle. Designed for high-performance lighting applications, it has a typical forward voltage of 5.25V and a maximum current rating of 2.5A. Tested at 200mA and 70°C, it achieves 134 lm/W and a luminous flux of 141lm. Key specifications include a CRI of 80 and dimensions of 19.90mm L x 19.90mm W with a height of 6.80mm. This component is suitable for use in general lighting, architectural lighting, and automotive lighting systems. Supplied in trays.
Additional Information
Series: L2, XLamp® XT-GRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | With Connector |
| Packaging | Tray |
| Color | White, Neutral |
| Wavelength | - |
| Size / Dimension | 19.90mm L x 19.90mm W |
| Type | LED Module |
| Configuration | Starboard |
| Voltage - Forward (Vf) (Typ) | 5.25V |
| Height | 6.80mm |
| Current - Test | 200mA |
| Viewing Angle | 120° |
| Lens Type | Domed |
| Current - Max | 2.5A |
| Lumens/Watt @ Current - Test | 134 lm/W |
| CCT (K) | 4000K |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 70°C |
| Luminous Flux @ Current/Temperature | 141lm (Typ) |
