L2-PGN2-S
LED MOD L2 XLAMP STARBRD 4100KManufacturer: Bivar Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

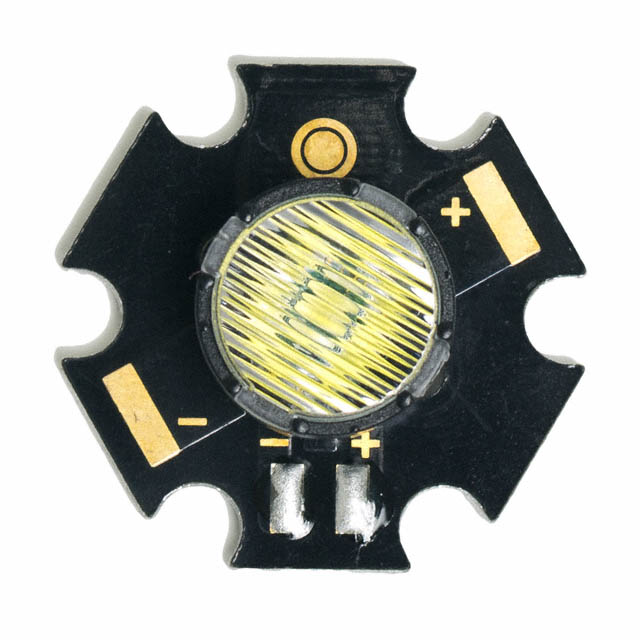

Bivar Inc. L2, XLamp® XP-G LED Module, Part Number L2-PGN2-S, offers a neutral white light output with a correlated color temperature (CCT) of 4100K. This component is configured on a starboard for efficient thermal management and easy integration. It features a typical forward voltage of 2.95V and a maximum continuous current of 1.5A, with a test current of 350mA yielding 88 lm/W. The luminous flux at the test conditions is 91 lumens. The module has dimensions of 19.90mm x 19.90mm and a height of 8.70mm, with a viewing angle of 35°. The Color Rendering Index (CRI) is 75. This LED module is suitable for general illumination, architectural lighting, and industrial lighting applications. It is supplied in trays.
Additional Information
Series: L2, XLamp® XP-GRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Neutral |
| Wavelength | - |
| Size / Dimension | 19.90mm L x 19.90mm W |
| Type | LED Module |
| Configuration | Starboard |
| Voltage - Forward (Vf) (Typ) | 2.95V |
| Height | 8.70mm |
| Current - Test | 350mA |
| Viewing Angle | 35° |
| Lens Type | Flat |
| Current - Max | 1.5A |
| Lumens/Watt @ Current - Test | 88 lm/W |
| CCT (K) | 4100K |
| CRI (Color Rendering Index) | 75 |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 70°C |
| Luminous Flux @ Current/Temperature | 91lm (Typ) |
Request a Quote
Clients Also Buy

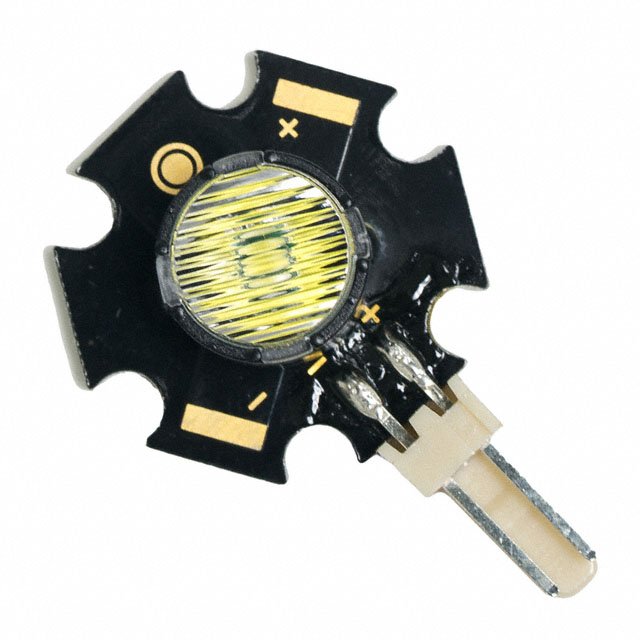

L2-PGC2-F
