803291
STAR THERM CLAD BOARD NICHIA PWRManufacturer: Bergquist
Categories: LED Thermal Products
Quality Control: Learn More

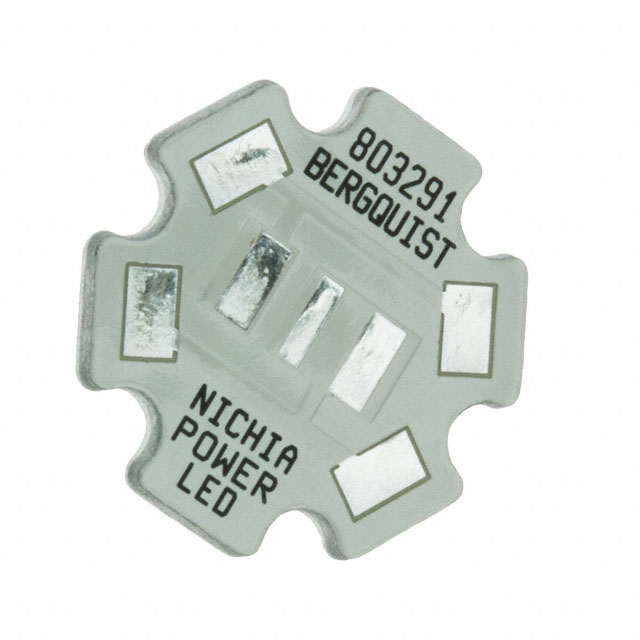

Bergquist Thermal Clad® IMS® 803291 is a star-shaped thermal management substrate specifically designed for high-power LED applications. This Thermal Clad Board facilitates efficient heat dissipation from Nichia Power LEDs with a 6.5 x 5.0 mm footprint. The Insulated Metal Substrate (IMS) construction provides superior thermal conductivity compared to traditional PCBs, crucial for maintaining LED junction temperatures and ensuring long-term reliability and performance. This component is integral to advanced lighting solutions in automotive, industrial, and general illumination sectors where thermal challenges are paramount. The 803291 is supplied one per package.
Additional Information
Series: Thermal Clad® IMS®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: 1 per PkgDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | 1 per Pkg |
| For Use With/Related Products | Nichia Power LED 6.5 x 5.0 |
| Shape | Star |
| Type | Thermal Clad Board |
