932470100
GO 070 FA MManufacturer: Belden Inc.
Categories: Headers, Male Pins
Quality Control: Learn More

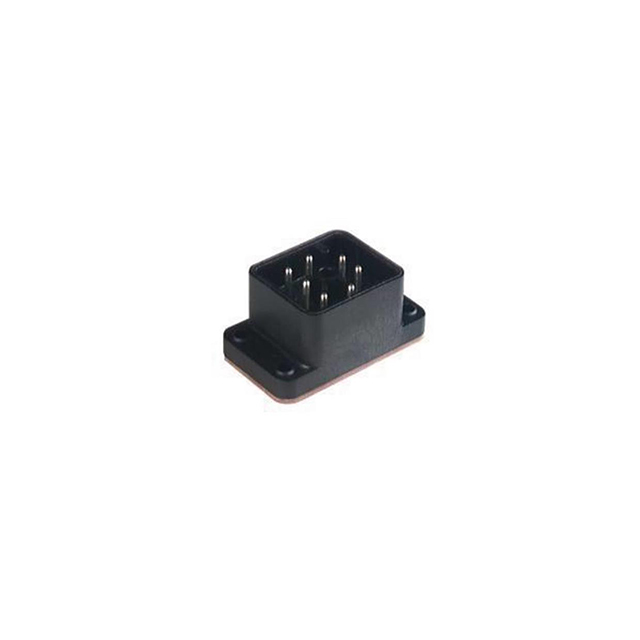

Connector Header Surface Mount 7 position
Additional Information
Series: GO-SeriesRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Mounting Flange |
| Packaging | Bulk |
| Connector Type | Receptacle |
| Voltage Rating | 50VAC/DC |
| Current Rating (Amps) | 10A |
| Mounting Type | Surface Mount |
| Number of Positions | 7 |
| Number of Rows | 3 |
| Style | Board to Cable/Wire |
| Operating Temperature | -40°C ~ 90°C |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-2 |
| Contact Material | Brass |
| Insulation Color | Black |
| Pitch - Mating | - |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - |
| Contact Shape | Circular |
| Contact Length - Post | - |
| Insulation Height | 0.787"" (19.99mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Polycarbonate, Glass Filled |
| Row Spacing - Mating | - |
| Contact Length - Mating | - |
