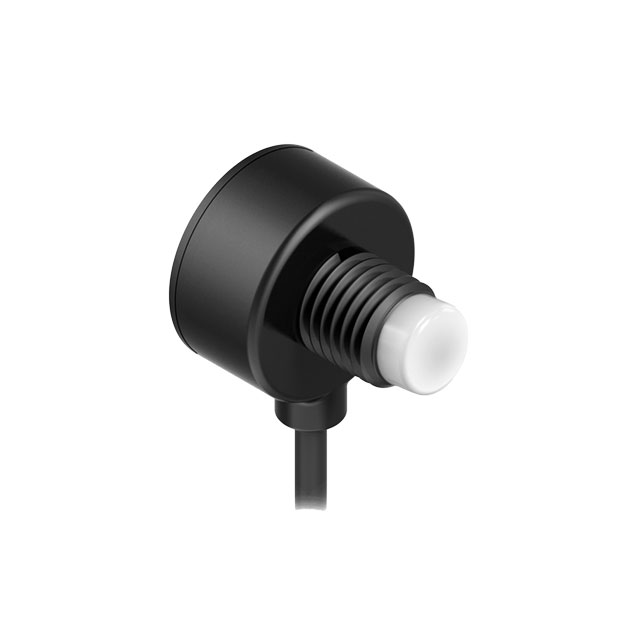

T8LGRXNQP
T8 SERIES EZ-LIGHT: 2-COLOR GENEManufacturer: Banner Engineering Corporation
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More
The Banner Engineering Corporation T8LGRXNQP is an EZ-LIGHT T8 Series LED panel indicator. This component features two distinct colors, Green and Red, with diffused illumination. It operates within a voltage range of 10V to 30V DC and draws a current of 20mA. The indicator is terminated with 78.74" (2m) wire leads for convenient integration. Designed for robust environments, it boasts an IP67 ingress protection rating. The T8LGRXNQP is suitable for panel mounting with a standard 0.32" (8.00mm) round cutout and features a round lens with a flat top. This component finds application in industrial automation, machine control, and signaling systems where clear visual status indication is critical.
Additional Information
Series: EZ-LIGHT T8RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Box |
| Current | 20mA |
| Voltage | 10V ~ 30V |
| Type | LED |
| Millicandela Rating | - |
| Termination Style | Wire Leads - 78.74"" (2m) |
| Lens Color | - |
| Viewing Angle | - |
| Ingress Protection | IP67 |
| Ratings | DC |
| Panel Cutout Dimensions | 0.32"" (8.00mm) |
| Wavelength - Peak | - |
| Lens Transparency | Diffused |
| Lamp Color | Green, Red |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | - |
Request a Quote
Clients Also Buy

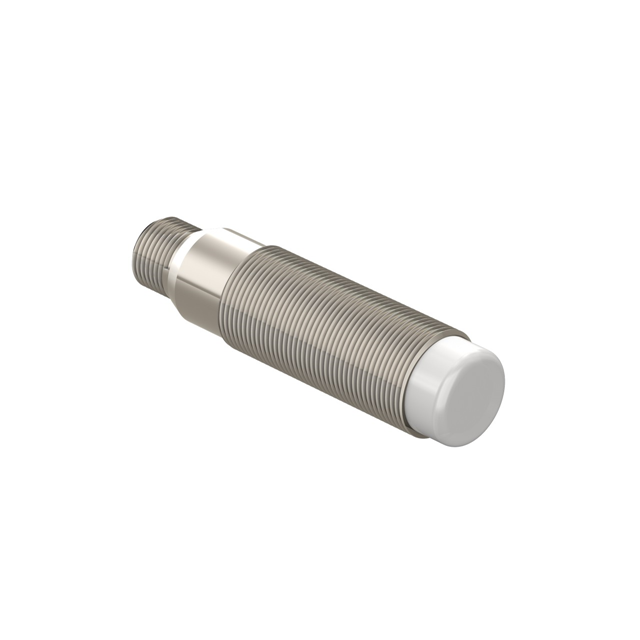

M18XXYPQ
M18 SERIES EZ-LIGHT: 1-COLOR GEN
M18GRY2NQ
M18 SERIES EZ-LIGHT: 3-COLOR MUL

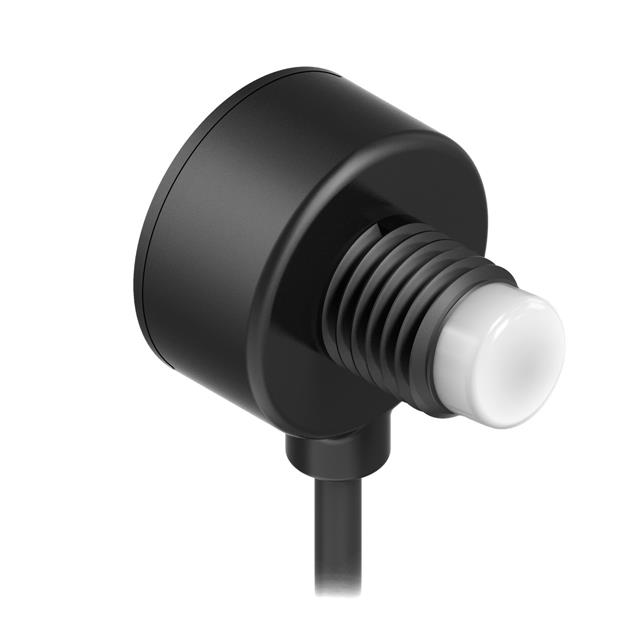

T8LGYX7PQP
