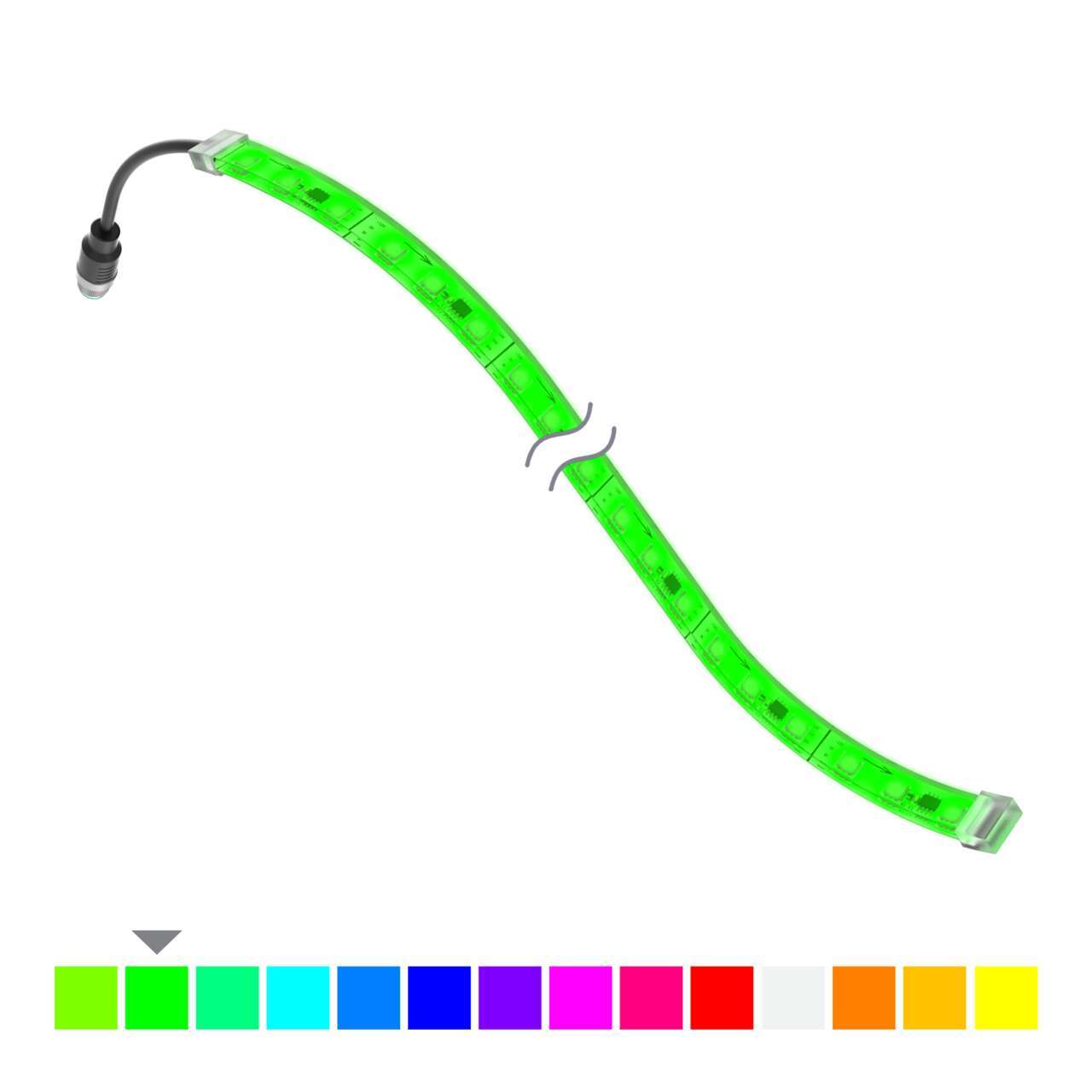

WLF12PXRGB600SQP
FLEXIBLE STRIP LIGHT, 600MMManufacturer: Banner Engineering Corporation
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
LED Lighting COBs Engines Modules LED Module WLF12 Red, Green, Blue (RGB) Linear Light Strip, Flexible
Additional Information
Series: WLF12RoHS Status: ROHS3 CompliantManufacturer Lead Time: 9 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | Dimming, IP66, IP67, IP69K, With Connector |
| Packaging | Box |
| Color | Red, Green, Blue (RGB) |
| Wavelength | 618nm Red, 520nm Green, 464nm Blue |
| Size / Dimension | 625.00mm L x 12.80mm W |
| Type | LED Module |
| Configuration | Linear Light Strip, Flexible |
| Voltage - Forward (Vf) (Typ) | 12V Red, 12V Green, 12V Blue |
| Height | 6.40mm |
| Current - Test | - |
| Viewing Angle | 120° |
| Lens Type | Flat |
| Current - Max | 400mA Red, 400mA Green, 400mA Blue |
| Lumens/Watt @ Current - Test | - |
| CCT (K) | - |
| CRI (Color Rendering Index) | - |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 60lm Red, 110lm Green, 20lm Blue |
