Q50BU
Q50 SERIES: LED-BASED TRIANGULATManufacturer: Banner Engineering Corporation
Categories: Angle, Linear Position Measuring
Quality Control: Learn More

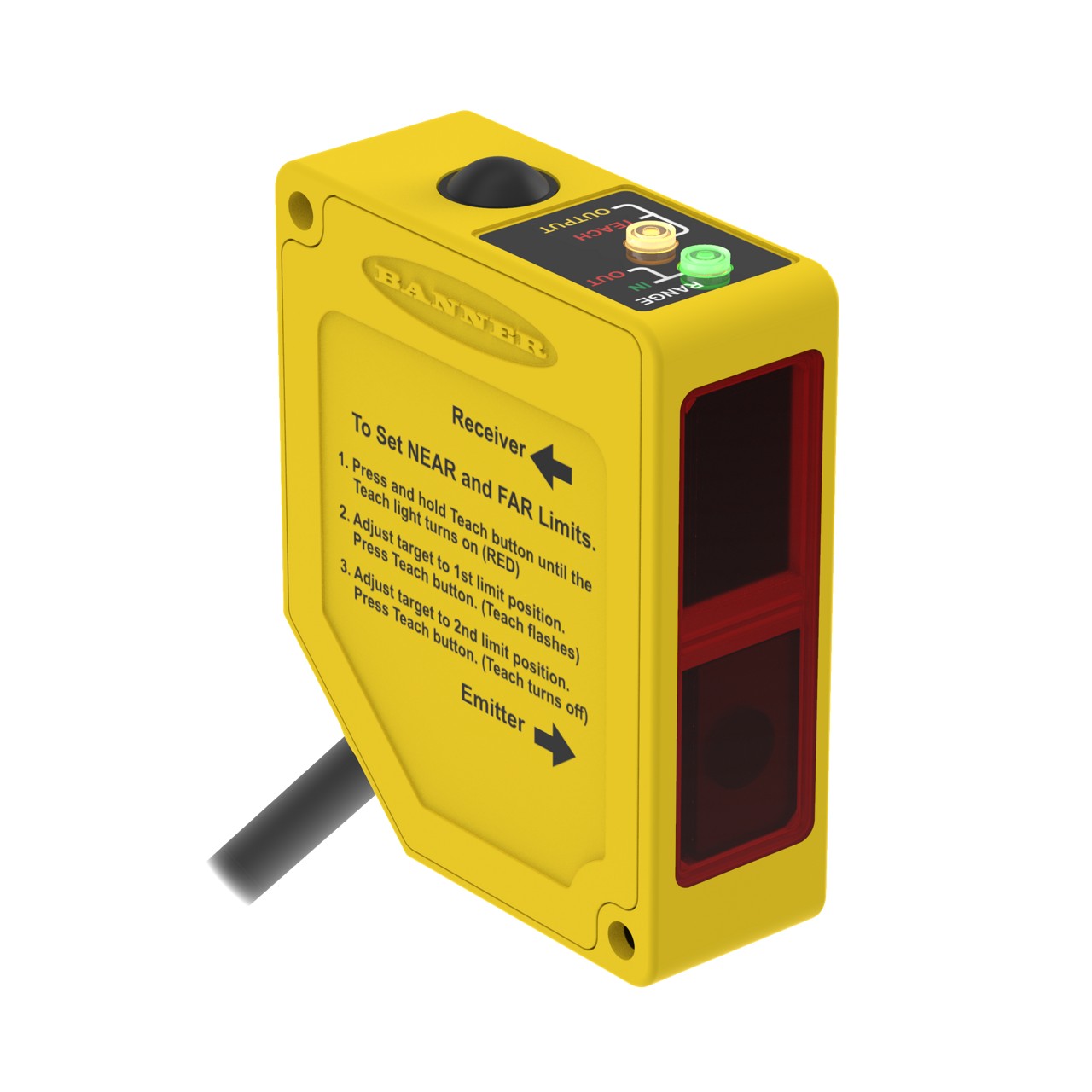

The Banner Engineering Corporation Q50BU is an optical sensor from the Q50 series designed for precise linear position measurement. This module features a cable termination and operates within a 15V to 30V supply voltage range, providing a 0V to 10V analog output. Its linear measurement range extends from 100mm to 400mm, utilizing optical technology for accurate detection. The Q50BU is suitable for chassis mounting and operates effectively across a temperature range of -10°C to 55°C. This component finds application in industrial automation and metrology systems where reliable linear displacement sensing is critical.
Additional Information
Series: Q50RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Output | 0 V ~ 10 V |
| Operating Temperature | -10°C ~ 55°C |
| Termination Style | Cable |
| Voltage - Supply | 15V ~ 30V |
| Linearity | - |
| Linear Range | 100 ~ 400.00mm (3.94 ~ 15.75"") |
| Actuator Type | - |
| Technology | Optical |
| Resistance Tolerance | - |
| For Measuring | Linear Position |
| Supplier Device Package | - |
| Rotation Angle - Electrical, Mechanical | - |
| Output Signal | - |
| Programmable | - |
