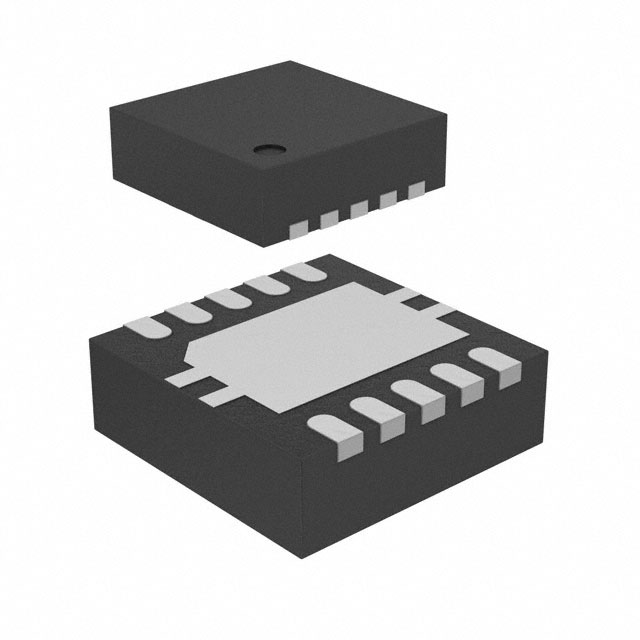

IQS263A-0-DNR
3 CH. CAPACITVE SENSOR FOR SCROLManufacturer: Azoteq (Pty) Ltd
Categories: Sensor, Capacitive Touch
Quality Control: Learn More
Azoteq's IQS263A-0-DNR, a member of the IQ Switch® and ProxSense® series, is a 3-channel capacitive sensor designed for advanced user interface applications. This electronic component offers robust capacitive touch sensing capabilities, enabling the implementation of buttons, sliders, and wheels. Featuring an I2C interface for digital communication, the IQS263A-0-DNR provides a resolution of 8 bits and supports proximity detection. It operates within a voltage supply range of 1.8V to 3.6V and draws a low supply current of 100µA. The device is suitable for surface mount assembly, housed in a 10-DFN (3x3) package. Its versatility finds application in consumer electronics, automotive interfaces, and industrial control systems. The component is supplied on Tape & Reel (TR).
Additional Information
Series: IQ Switch®, ProxSense®RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:%20Ltd&mpn=IQS263A-0-DNR&lbl=1&lbc=000000&q3=1)
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-VFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Interface | I2C |
| Type | Buttons, Slider, Wheel |
| Operating Temperature | -20°C ~ 85°C |
| Voltage - Supply | 1.8V ~ 3.6V |
| Current - Supply | 100µA |
| Number of Inputs | 3 |
| Resolution | 8 b |
| Supplier Device Package | 10-DFN (3x3) |
| Proximity Detection | Yes |
| Programmable | Not Verified |
