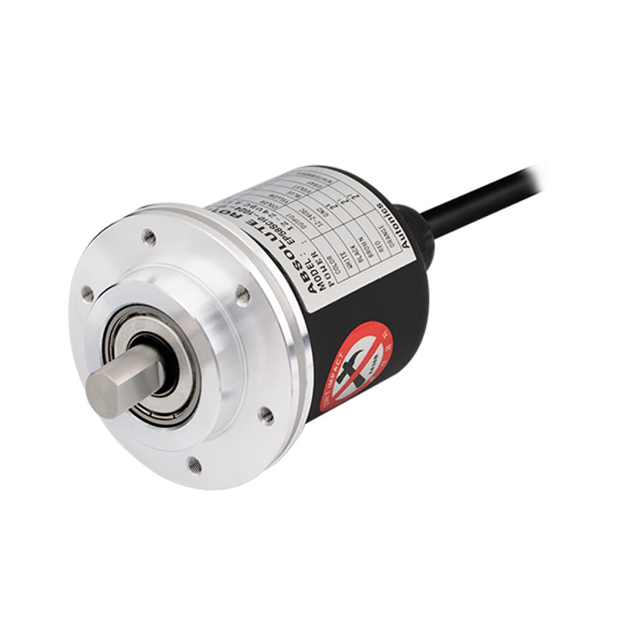

EP58SC10-360-3F-P-24
ENCODER ABSOLUTE 58MM 12-24VDCManufacturer: Autonics
Categories: Encoders
Quality Control: Learn More
Rotary Encoder Absolute 360 Gray Code (Absolute), PNP - Open Collector User Selectable
Additional Information
Series: EP58RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Output Type | Gray Code (Absolute), PNP - Open Collector |
| Mounting Type | Chassis Mount |
| Orientation | User Selectable |
| Termination Style | Cable |
| Voltage - Supply | 12V ~ 24V |
| Encoder Type | Absolute |
| Detent | No |
| Pulses per Revolution | 360 |
| Actuator Type | 10mm Dia Flatted End |
| Built in Switch | No |
| Rotational Life (Cycles Min) | - |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy

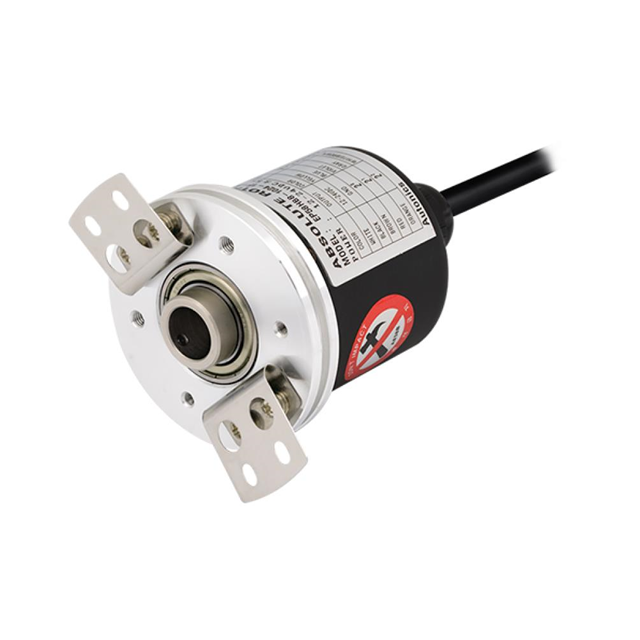

EP58HB8-360-3F-P-24
