AF240GSTIC-7BAIP
SSD 240GB M.2 MODULE 3D SATA IIIManufacturer: ATP Electronics, Inc.
Categories: Solid State Drives (SSDs), Hard Disk Drives (HDDs)
Quality Control: Learn More

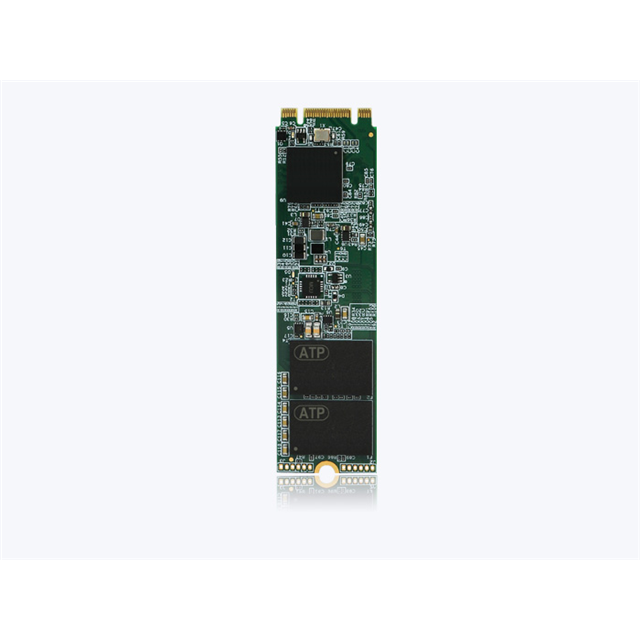

The ATP Electronics, Inc. 2280 D2-B-M series AF240GSTIC-7BAIP is a 240GB M.2 SATA III solid-state drive module. This component utilizes 3D NAND flash memory, offering enhanced density and performance. Engineered for demanding operating environments, it features a wide operating temperature range of -40°C to 85°C. The module adheres to the M.2 2280 form factor, measuring 80.00mm x 22.00mm x 3.35mm. Sequential read speeds reach up to 560MB/s, with sequential write speeds up to 450MB/s, facilitated by the SATA III interface. This drive is suitable for industrial computing, embedded systems, and data acquisition applications where reliability and performance under extended temperature conditions are critical. The AF240GSTIC-7BAIP is supplied in tray packaging.
Additional Information
Series: 2280 D2-B-MRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Size / Dimension | 80.00mm x 22.00mm x 3.35mm |
| Memory Size | 240GB |
| Memory Type | Solid State Drive (SSD) FLASH - NAND (3D) |
| Type | SATA III |
| Operating Temperature | -40°C ~ 85°C |
| Form Factor | M.2 Module |
| Speed - Read | 560MB/s |
| Speed - Write | 450MB/s |
