AT90PWM316-16SUR
IC MCU 8BIT 16KB FLASH 32SOICManufacturer: Atmel
Categories: Microcontrollers
Quality Control: Learn More
The Atmel AT90PWM316-16SUR is an 8-bit AVR microcontroller featuring 16KB of FLASH program memory and 1KB of RAM. This device operates at a maximum frequency of 16MHz and includes an 11-channel 10-bit Analog-to-Digital converter and a 10-bit Digital-to-Analog converter. Connectivity options include SPI and UART/USART interfaces. Peripherals such as Brown-out Detect/Reset, Power-On Reset (POR), Pulse Width Modulation (PWM) generation, and Watchdog Timer (WDT) are integrated. The AT90PWM316-16SUR is supplied in a 32-SOIC package for surface mounting and operates within an ambient temperature range of -40°C to 105°C. This microcontroller is utilized in lighting control and other general-purpose embedded applications.
Additional Information
Series: AVR® 90PWM LightingRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |

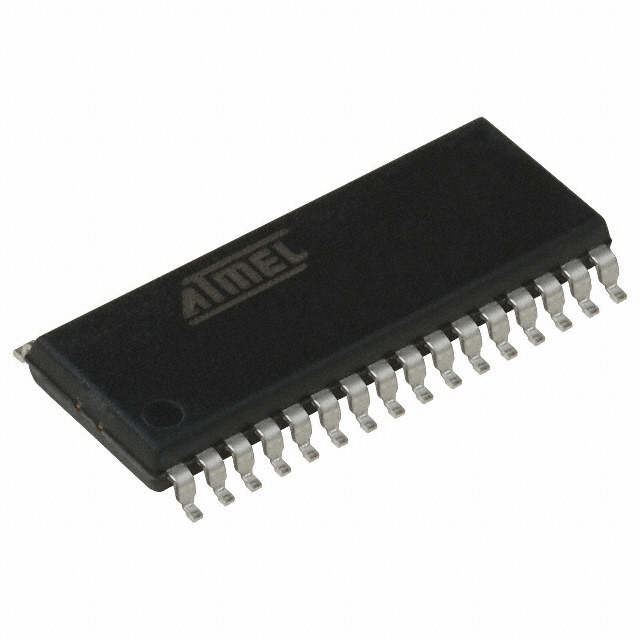

| Package / Case | 32-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Speed | 16MHz |
| Program Memory Size | 16KB (16K x 8) |
| RAM Size | 1K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 512 x 8 |
| Core Processor | AVR |
| Data Converters | A/D 11x10b; D/A 1x10b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Connectivity | SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Supplier Device Package | 32-SOIC |
| Number of I/O | 27 |
| Programmable | Not Verified |
