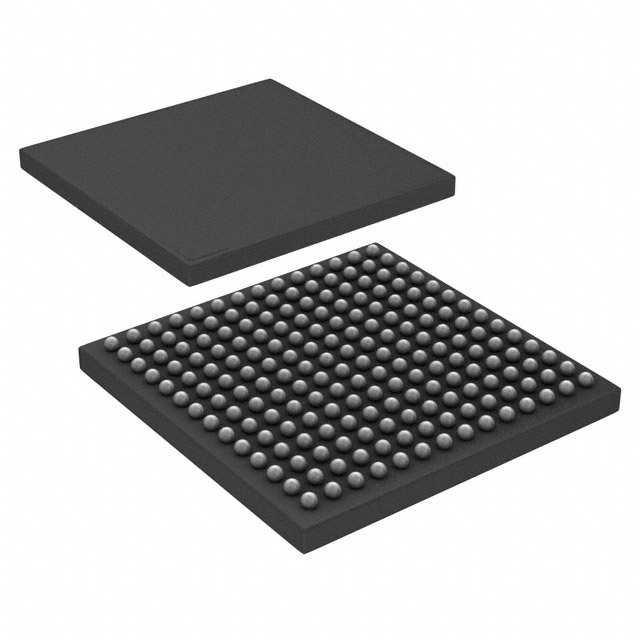

AT32AP7002-CTUT
IC MCU 32BIT ROMLESS 196CTBGAManufacturer: Atmel
Categories: Microcontrollers
Quality Control: Learn More
Atmel AVR®32 AP7 Series microcontroller, part number AT32AP7002-CTUT, features a 32-Bit Single-Core AVR processor operating at 150MHz. This ROMless device offers 32K x 8 RAM and includes two 16-bit Digital-to-Analog converters. Connectivity options encompass EBI/EMI, I2C, Memory Card, PS/2, SPI, SSC, UART/USART, and USB. Peripherals include AC'97, DMA, I2S, LCD, POR, PWM, and WDT. With 85 I/O lines and an internal oscillator, this surface mount component is supplied in a 196-CTBGA (12x12) package. It operates within a voltage range of 1.65V to 1.95V and a temperature range of -40°C to 85°C. Applications span areas requiring advanced embedded control and digital signal processing.
Additional Information
Series: AVR®32 AP7RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 196-TFBGA, CSBGA |
| Mounting Type | Surface Mount |
| Speed | 150MHz |
| Program Memory Size | - |
| RAM Size | 32K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | ROMless |
| EEPROM Size | - |
| Core Processor | AVR |
| Data Converters | D/A 2x16b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.65V ~ 1.95V |
| Connectivity | EBI/EMI, I2C, Memory Card, PS/2, SPI, SSC, UART/USART, USB |
| Peripherals | AC'97, DMA, I2S, LCD, POR, PWM, WDT |
| Supplier Device Package | 196-CTBGA (12x12) |
| Number of I/O | 85 |
| Programmable | Not Verified |
