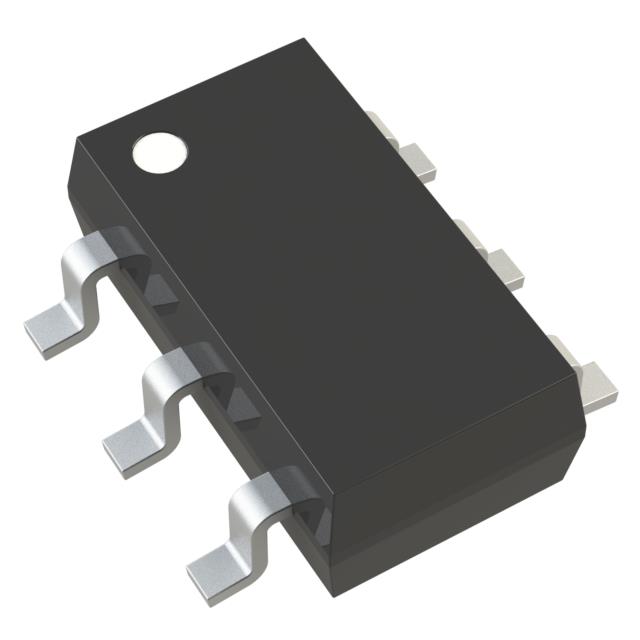

AK8778B
MAGNETIC SWITCH LATCH DUAL 6SOPManufacturer: Asahi Kasei Microdevices/AKM
Categories: Switches (Solid State)
Quality Control: Learn More
The Asahi Kasei Microdevices/AKM AK8778B is a dual Hall effect latching switch designed for surface mount applications. This digital switch features open-drain outputs capable of sourcing up to 20mA and operates from a supply voltage range of 4V to 24V. With a maximum supply current of 5.6mA, the AK8778B exhibits a typical sensing range of 4mT for trip and release thresholds, responding to the south pole of a magnetic field. Its 6-SOP package, specifically a SOT-23-6, is supplied on tape and reel for automated assembly. This component is suitable for applications in automotive systems, industrial automation, and consumer electronics where precise magnetic field sensing and switching are required. The operating temperature range is -40°C to 125°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-23-6 |
| Output Type | Open Drain |
| Polarization | South Pole |
| Mounting Type | Surface Mount |
| Function | Latch, Dual |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Voltage - Supply | 4V ~ 24V |
| Technology | Hall Effect |
| Sensing Range | 4mT Trip, -4mT Release |
| Current - Output (Max) | 20mA |
| Current - Supply (Max) | 5.6mA |
| Supplier Device Package | 6-SOP |
| Test Condition | -40°C ~ 125°C |
