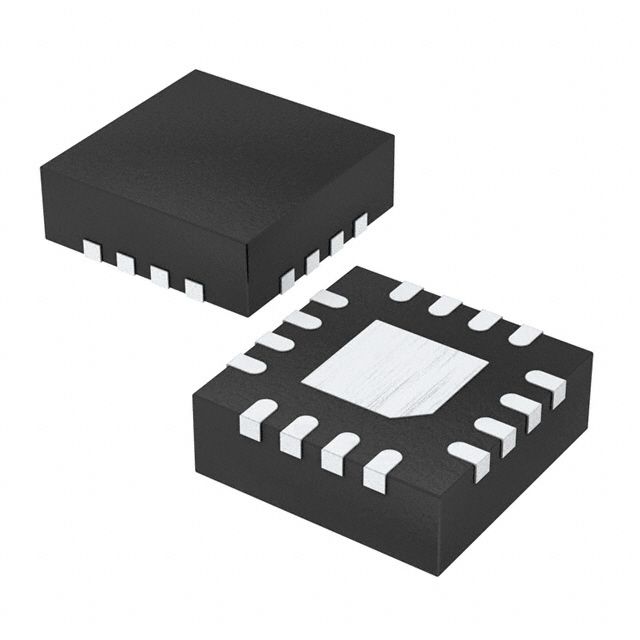

AP1010AEN
IC MOTOR DRIVER 0V-5.5V 16QFNManufacturer: Asahi Kasei Microdevices/AKM
Categories: Motor Drivers, Controllers
Quality Control: Learn More
Asahi Kasei Microdevices/AKM AP1010AEN is a fully integrated motor driver featuring a control and power stage. This device utilizes Power MOSFET technology and is housed in a compact 16-QFNJ (3x3) package, suitable for surface mount applications. The AP1010AEN offers a parallel interface for control and provides four half-bridge output configurations. It supports load voltages from 6V to 18V and a supply voltage range of 0V to 5.5V, with a maximum output current of 700mA. This component is designed for operation within an ambient temperature range of -30°C to 85°C. Its robust design makes it suitable for various industrial applications requiring efficient motor control. The AP1010AEN is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 700mA |
| Interface | Parallel |
| Operating Temperature | -30°C ~ 85°C (TA) |
| Output Configuration | Half Bridge (4) |
| Voltage - Supply | 0V ~ 5.5V |
| Applications | - |
| Technology | Power MOSFET |
| Voltage - Load | 6V ~ 18V |
| Supplier Device Package | 16-QFNJ (3x3) |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | - |
| Step Resolution | - |
