AP1150ADS33
IC REG LINEAR 3.3V 200MA SOT23-5Manufacturer: Asahi Kasei Microdevices/AKM
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
The Asahi Kasei Microdevices/AKM AP1150ADS33 is a positive fixed output linear voltage regulator designed for applications requiring stable power delivery. This SOT-23-5 packaged component provides a 3.3V output with a maximum output current of 200mA. Key features include an enable pin for power sequencing, a bypass pin for improved transient response, and robust protection against over current and short circuits. With a low quiescent current of 120 µA and a maximum input voltage of 14V, the AP1150ADS33 offers a dropout voltage of 0.39V at 200mA. Its high power supply rejection ratio (PSRR) of 80dB at 1kHz makes it suitable for noise-sensitive applications in automotive and industrial sectors. The device operates within a temperature range of -40°C to 85°C and is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-74A, SOT-753 |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 200mA |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 120 µA |
| Voltage - Input (Max) | 14V |
| Number of Regulators | 1 |
| Supplier Device Package | SOT-23-5 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3.3V |
| Control Features | Enable, Bypass |
| PSRR | 80dB (1kHz) |
| Voltage Dropout (Max) | 0.39V @ 200mA |
| Protection Features | Over Current, Short Circuit |
| Current - Supply (Max) | 2.2 mA |
Request a Quote
Clients Also Buy

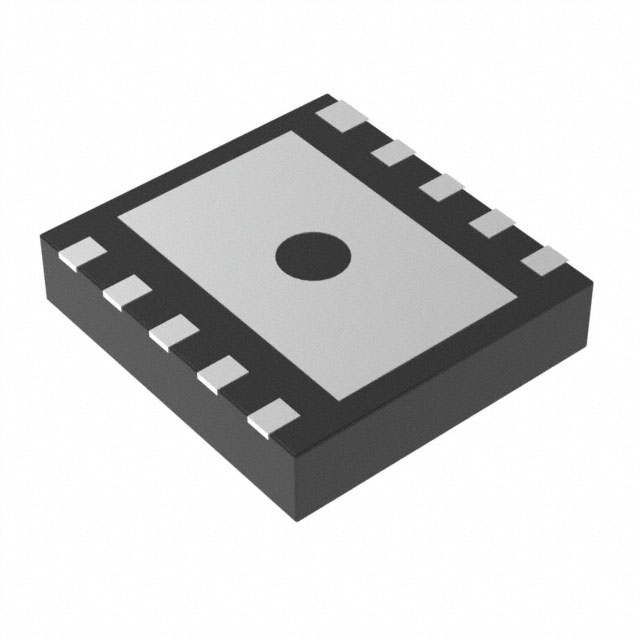

AK1110AEU50
