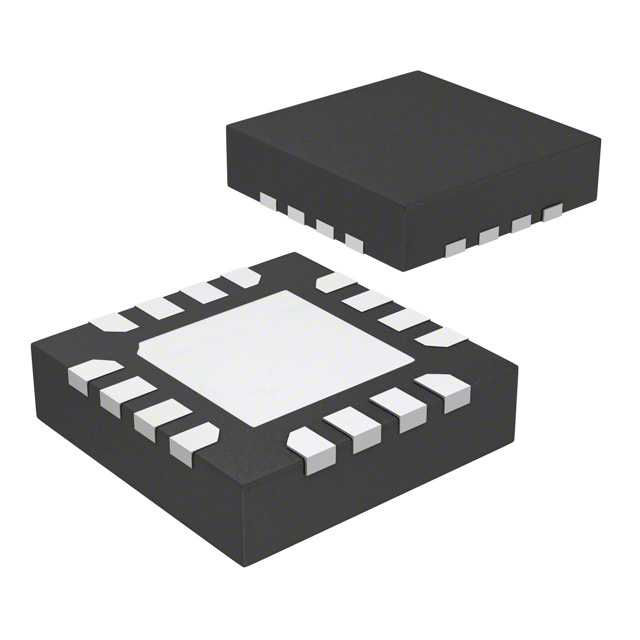

AK8963N
SENSOR HALL I2C/SPI 16QFNManufacturer: Asahi Kasei Microdevices/AKM
Categories: Linear, Compass (ICs)
Quality Control: Learn More
The Asahi Kasei Microdevices/AKM AK8963N is a 3-axis Hall effect sensor designed for precise magnetic field detection. This component supports both I2C and SPI communication protocols, offering flexibility in system integration. Featuring a 16-bit resolution, the AK8963N accurately measures magnetic flux densities up to ±4.9mT. Its integrated sleep mode contributes to power efficiency, with a maximum supply current of 10mA. The sensor is housed in a compact 16-QFN (3x3) package suitable for surface mounting. Operating within a temperature range of -30°C to 85°C, this device is commonly employed in mobile devices, navigation systems, and industrial automation applications requiring accurate directional sensing.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Sleep Mode |
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-WFQFN Exposed Pad |
| Output Type | I2C, SPI |
| Mounting Type | Surface Mount |
| Axis | X, Y, Z |
| Operating Temperature | -30°C ~ 85°C |
| Voltage - Supply | 2.4V ~ 3.6V |
| Bandwidth | - |
| Technology | Hall Effect |
| Resolution | 16 b |
| Sensing Range | ±4.9mT |
| Current - Output (Max) | - |
| Current - Supply (Max) | 10mA |
| Supplier Device Package | 16-QFN (3x3) |
