AK09970N

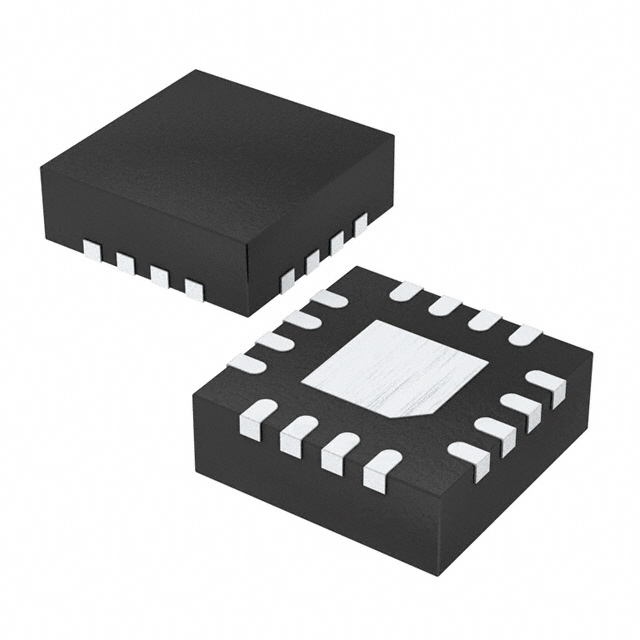

SENSOR HALL I2C/SPI 16QFNManufacturer: Asahi Kasei Microdevices/AKM
Categories: Linear, Compass (ICs)
Quality Control: Learn More
Asahi Kasei Microdevices/AKM AK09970N is a 16-bit Hall Effect sensor designed for precise magnetic field measurement along the X, Y, and Z axes. This advanced component offers selectable scale functionality, enabling users to tailor its sensitivity to specific application requirements. Communication is facilitated via both I2C and SPI interfaces, providing flexibility for system integration. The device operates within a voltage supply range of 1.7V to 3.6V and boasts a sensing range of ±39mT. Housed in a compact 16-QFN (3x3) package, it is suitable for surface mount applications. The operating temperature range is -40°C to 85°C. This sensor finds application in consumer electronics, automotive systems, and industrial control, where accurate magnetic field detection is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Selectable Scale |
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-WFQFN Exposed Pad |
| Output Type | I2C, SPI |
| Mounting Type | Surface Mount |
| Axis | X, Y, Z |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1.7V ~ 3.6V |
| Bandwidth | - |
| Technology | Hall Effect |
| Resolution | 16 b |
| Sensing Range | ±39mT |
| Current - Output (Max) | - |
| Current - Supply (Max) | - |
| Supplier Device Package | 16-QFN (3x3) |
