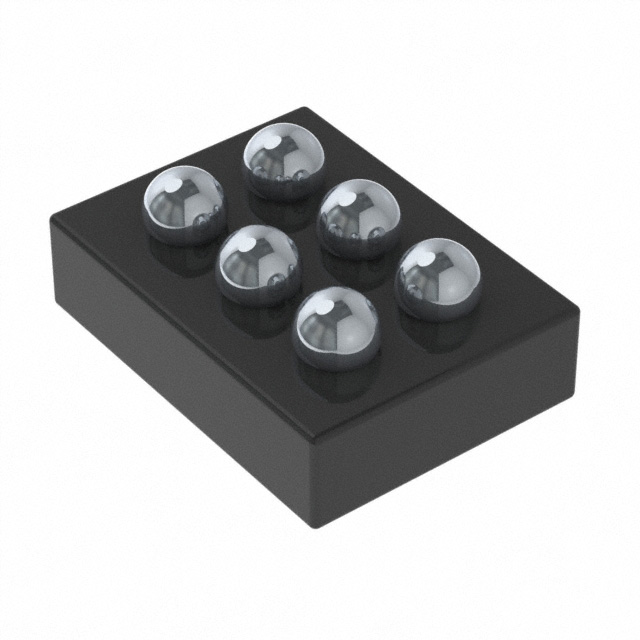

AK09970D
IC 3D MAGNETIC SENSORManufacturer: Asahi Kasei Microdevices/AKM
Categories: Linear, Compass (ICs)
Quality Control: Learn More
Asahi Kasei Microdevices/AKM AK09970D is a 3D magnetic sensor utilizing Hall Effect technology. This component offers X, Y, and Z axis magnetic field sensing with a selectable scale feature and a resolution of 16 bits. The device operates within a voltage supply range of 1.7V to 3.6V and features an I2C output interface. Packaged in a compact 6-WLCSP (1.35x1.35) format, it is designed for surface mount applications. The AK09970D is suitable for a sensing range of ±36mT and operates across an industrial temperature range of -40°C to 85°C. This sensor is commonly employed in consumer electronics, mobile devices, and automotive applications requiring precise magnetic field detection.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Selectable Scale |
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-UFBGA, WLCSP |
| Output Type | I2C |
| Mounting Type | Surface Mount |
| Axis | X, Y, Z |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1.7V ~ 3.6V |
| Bandwidth | - |
| Technology | Hall Effect |
| Resolution | 16 b |
| Sensing Range | ±36mT |
| Current - Output (Max) | - |
| Current - Supply (Max) | - |
| Supplier Device Package | 6-WLCSP (1.35x1.35) |
