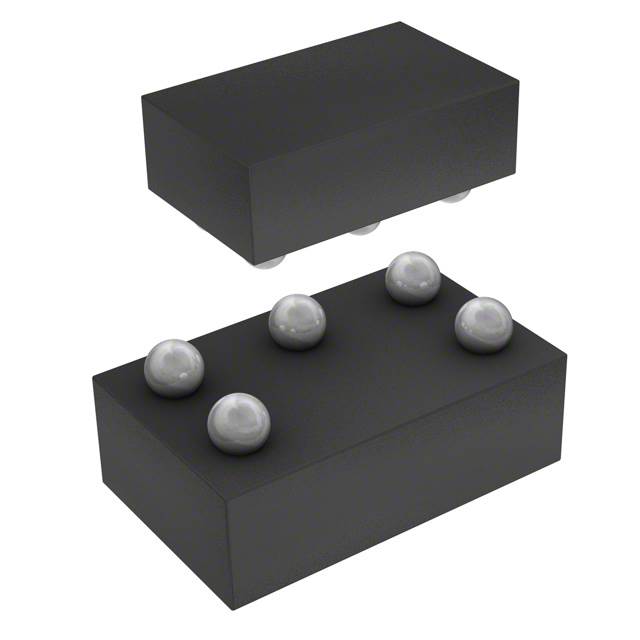

AK09916C
SENSOR HALL EFFECT I2C 5WLCSPManufacturer: Asahi Kasei Microdevices/AKM
Categories: Linear, Compass (ICs)
Quality Control: Learn More
The Asahi Kasei Microdevices/AKM AK09916C is a 3-axis Hall effect sensor featuring an I2C interface. This compact 5-WLCSP (1.18x0.78) component provides high-resolution 16-bit output for each of the X, Y, and Z axes, with a sensing range of 4.7mT to 5.2mT. Designed for surface mount applications, it operates within a voltage supply range of 1.65V to 1.95V, drawing a maximum supply current of 4mA and delivering a maximum output current of 3mA. The AK09916C is suitable for use in consumer electronics, wearable devices, and automotive applications requiring precise magnetic field detection. It is supplied on tape and reel for efficient automated assembly.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 5-UFBGA, WLCSP |
| Output Type | I2C |
| Mounting Type | Surface Mount |
| Axis | X, Y, Z |
| Operating Temperature | -30°C ~ 85°C |
| Voltage - Supply | 1.65V ~ 1.95V |
| Bandwidth | - |
| Technology | Hall Effect |
| Resolution | 16 b |
| Sensing Range | 4.7mT ~ 5.2mT |
| Current - Output (Max) | 3mA |
| Current - Supply (Max) | 4mA |
| Supplier Device Package | 5-WLCSP (1.18x0.78) |
