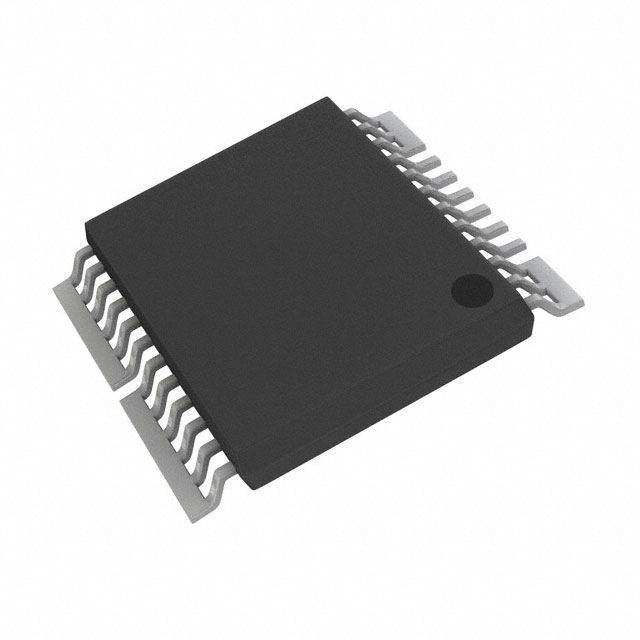

CQ3202
CORELESS CURENT SENSOR / 20A W/SManufacturer: Asahi Kasei Microdevices/AKM
Categories: Current Sensors
Quality Control: Learn More
The Asahi Kasei Microdevices/AKM CQ3202 is a Hall Effect, open-loop current sensor designed for precision measurement. This bidirectional sensor accurately measures AC and DC currents up to 21.1A with a ±1.3% sensitivity. Featuring a ratiometric voltage output, the CQ3202 offers a typical sensitivity of 60mV/A and a response time of 0.5µs. It operates from a 3.3V supply with a maximum supply current of 6.2mA. The sensor is housed in a 24-LSSOP package with 10 leads, suitable for surface mounting. Its robust performance and compact form factor make it ideal for applications in power management, electric vehicle systems, and industrial automation where accurate current monitoring is critical. The component is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-LSSOP (0.220"", 5.60mm Width), 10 Leads |
| Polarization | Bidirectional |
| Sensitivity | 60mV/A |
| Mounting Type | Surface Mount |
| Output | Ratiometric, Voltage |
| Frequency | - |
| Accuracy | ±1.3% |
| Operating Temperature | -40°C ~ 90°C |
| Voltage - Supply | 3.3V |
| Response Time | 0.5µs |
| Sensor Type | Hall Effect, Open Loop |
| Linearity | - |
| For Measuring | AC/DC |
| Current - Supply (Max) | 6.2mA |
| Current - Sensing | 21.1A |
| Supplier Device Package | 24-VSOP |
| Number of Channels | 1 |
