AK310H

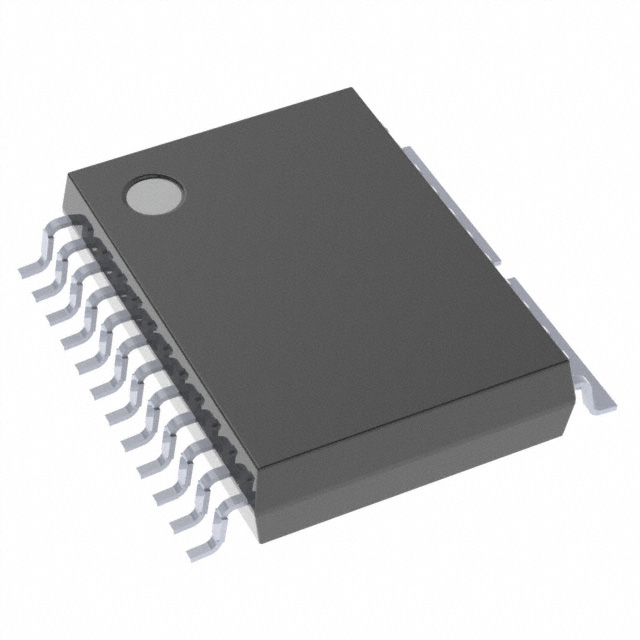

IC CORELESS CURRENT SENSE 14SOPManufacturer: Asahi Kasei Microdevices/AKM
Categories: Current Sensors
Quality Control: Learn More
The Asahi Kasei Microdevices/AKM AK310H is a Hall Effect, open-loop current sensor designed for unidirectional sensing of AC/DC currents up to 42A. This component features a 24-PowerLSSOP surface mount package with 14 leads, offering a compact footprint for high-density applications. The AK310H provides a ratiometric voltage output with a sensitivity of 50mV/A and excellent linearity of ±0.6%. Its ±1.5% accuracy and 2µs response time make it suitable for applications requiring precise current monitoring. Operating from a 4.5V to 5.5V supply with a maximum current draw of 20mA, this sensor functions across an operating temperature range of -40°C to 90°C and supports frequencies up to 210kHz. The AK310H is commonly employed in power supply monitoring, motor control, and battery management systems across various industrial and automotive sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-PowerLSSOP (0.220"", 5.60mm Width), 14 Leads |
| Polarization | Unidirectional |
| Sensitivity | 50mV/A |
| Mounting Type | Surface Mount |
| Output | Ratiometric, Voltage |
| Frequency | 210kHz |
| Accuracy | ±1.5% |
| Operating Temperature | -40°C ~ 90°C |
| Voltage - Supply | 4.5V ~ 5.5V |
| Response Time | 2µs |
| Sensor Type | Hall Effect, Open Loop |
| Linearity | ±0.6% |
| For Measuring | AC/DC |
| Current - Supply (Max) | 20mA |
| Current - Sensing | 42A |
| Supplier Device Package | 24-SMD |
| Number of Channels | 1 |
