AK3101

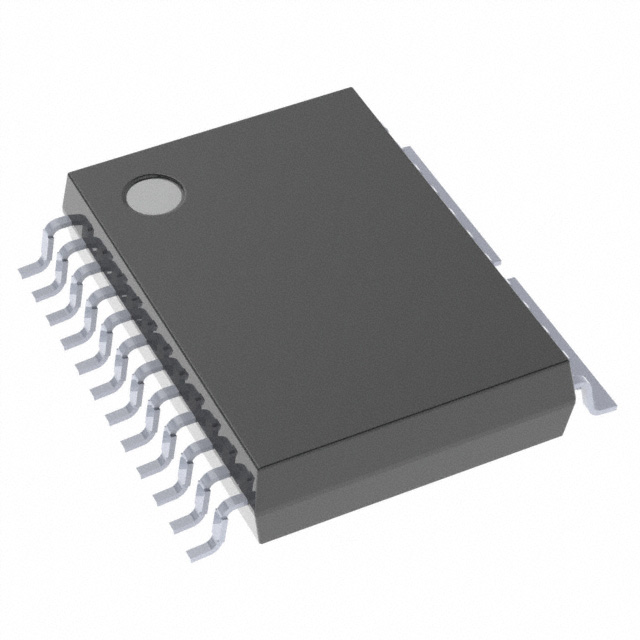

IC CORELESS CURRENT SENSE 14SOPManufacturer: Asahi Kasei Microdevices/AKM
Categories: Current Sensors
Quality Control: Learn More
Asahi Kasei Microdevices/AKM AK3101 is a unidirectional, open-loop Hall effect current sensor designed for surface mounting. This 1-channel device accurately measures up to 10.7A with a sensitivity of 195mV/A and a linearity of ±0.6%. It operates within a voltage supply range of 4.5V to 5.5V, drawing a maximum of 20mA. The sensor provides ratiometric voltage output and boasts a response time of 2µs with a bandwidth up to 210kHz, suitable for both AC and DC current sensing. Packaged in a 14-lead, 24-PowerLSSOP (0.220"", 5.60mm Width), it is supplied on a tape and reel. Typical applications include power supply monitoring, motor control, and battery management systems across industrial and automotive sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-PowerLSSOP (0.220"", 5.60mm Width), 14 Leads |
| Polarization | Unidirectional |
| Sensitivity | 195mV/A |
| Mounting Type | Surface Mount |
| Output | Ratiometric, Voltage |
| Frequency | 210kHz |
| Accuracy | ±1.5% |
| Operating Temperature | -40°C ~ 90°C |
| Voltage - Supply | 4.5V ~ 5.5V |
| Response Time | 2µs |
| Sensor Type | Hall Effect, Open Loop |
| Linearity | ±0.6% |
| For Measuring | AC/DC |
| Current - Supply (Max) | 20mA |
| Current - Sensing | 10.7A |
| Supplier Device Package | 24-SMD |
| Number of Channels | 1 |
