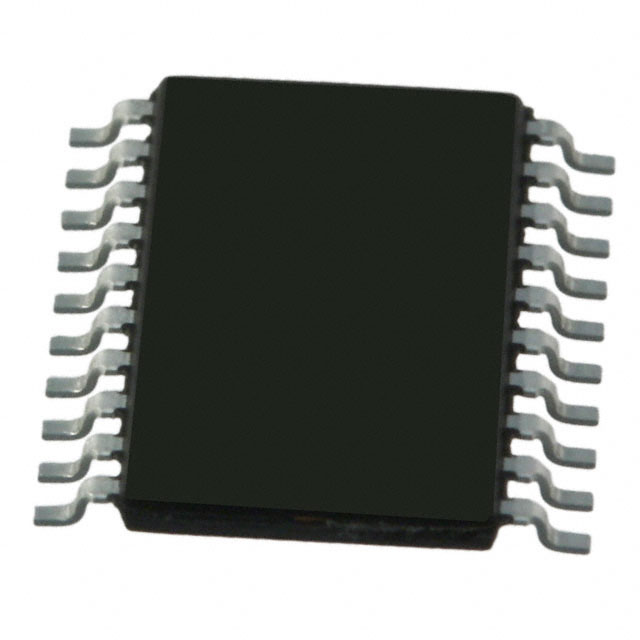

AK4556VT
IC STEREO CODEC 24BIT 20TSSOPManufacturer: Asahi Kasei Microdevices/AKM
Categories: CODECS
Quality Control: Learn More
Asahi Kasei Microdevices/AKM AK4556VT is a 24-bit stereo audio codec featuring a serial interface. This device offers 2 ADCs and 2 DACs with typical dynamic ranges of 103 dB for ADCs and 106 dB for DACs, complemented by signal-to-noise ratios of 91 dB (ADC) and 90 dB (DAC). Utilizing Sigma Delta architecture, it operates within analog and digital supply voltage ranges of 2.4V to 3.6V and 2.7V to 3.6V. The AK4556VT is housed in a 20-TSSOP package with surface mount capabilities and is supplied on tape and reel. It finds application in consumer electronics, audio processing systems, and professional audio equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Type | Audio |
| Data Interface | Serial |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 2.4V ~ 3.6V, 2.7V ~ 3.6V |
| Voltage - Supply, Digital | 2.4V ~ 3.6V, 2.7V ~ 3.6V |
| Resolution (Bits) | 24 b |
| Dynamic Range, ADCs / DACs (db) Typ | 103 / 106 |
| Number of ADCs / DACs | 2 / 2 |
| S/N Ratio, ADCs / DACs (db) Typ | 91 / 90 |
| Sigma Delta | Yes |
| Supplier Device Package | 20-TSSOP |
