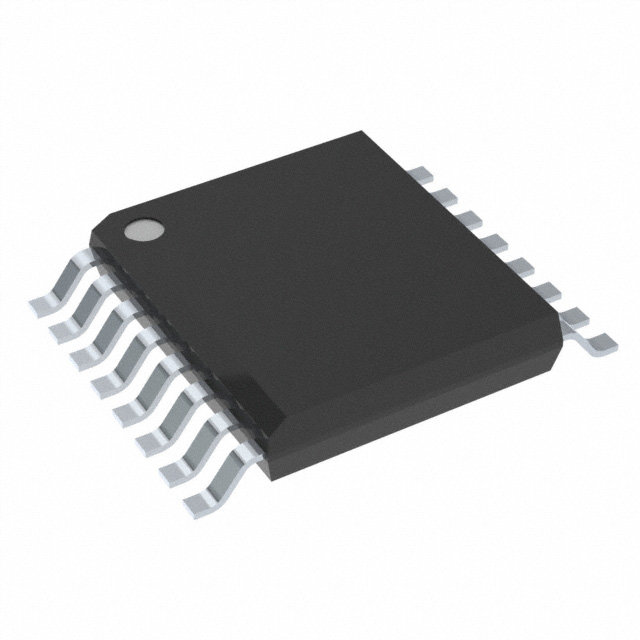

AK2301
IC PCM CODEC LSI 1CH 3V 16TSSOPManufacturer: Asahi Kasei Microdevices/AKM
Categories: CODECS
Quality Control: Learn More
The Asahi Kasei Microdevices/AKM AK2301 is a single-channel PCM CODEC LSI designed for high-fidelity audio applications. This surface-mount component utilizes a 16-TSSOP package and operates with supply voltages ranging from 3V to 3.6V for both analog and digital sections. It features a standard PCM data interface, facilitating straightforward integration into digital audio systems. The AK2301 is suitable for use in consumer electronics and communication equipment requiring robust audio conversion. Its 16-bit resolution and 1 channel of ADCs and DACs provide efficient audio processing. The device is supplied on Tape & Reel (TR) for automated assembly.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Type | PCM |
| Data Interface | PCM |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 3V ~ 3.6V |
| Voltage - Supply, Digital | 3V ~ 3.6V |
| Resolution (Bits) | - |
| Dynamic Range, ADCs / DACs (db) Typ | - |
| Number of ADCs / DACs | 1 / 1 |
| S/N Ratio, ADCs / DACs (db) Typ | - |
| Sigma Delta | No |
| Supplier Device Package | 16-TSSOP |
