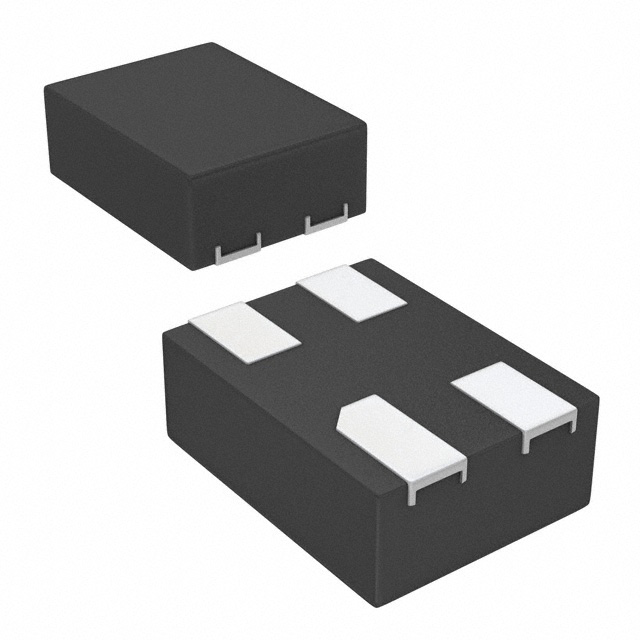

AK8172A
IC CLOCK GEN PLL 4USONManufacturer: Asahi Kasei Microdevices/AKM
Categories: Clock Generators, PLLs, Frequency Synthesizers
Quality Control: Learn More
The Asahi Kasei Microdevices/AKM AK8172A is a single-circuit clock generator and synthesizer featuring a Phase-Locked Loop (PLL). This device operates with a supply voltage range of 1.7V to 1.9V and a maximum output frequency of 72.36MHz. It is designed for surface mount applications, provided in a compact 4-USON (1.3x1.1) package, supplied on a tape and reel. The AK8172A facilitates a 1:1 input to output ratio and does not include internal dividers or multipliers. Its operating temperature range is -20°C to 85°C. This component is widely utilized in mobile communications and consumer electronics for precise clock generation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-UFDFN |
| Mounting Type | Surface Mount |
| Output | Clock |
| Frequency - Max | 72.36MHz |
| Input | Clock |
| Operating Temperature | -20°C ~ 85°C |
| Voltage - Supply | 1.7V ~ 1.9V |
| Ratio - Input:Output | 1:1 |
| Differential - Input:Output | No/No |
| Supplier Device Package | 4-USON (1.3x1.1) |
| PLL | Yes |
| Divider/Multiplier | No/No |
| Number of Circuits | 1 |
| Programmable | Not Verified |
