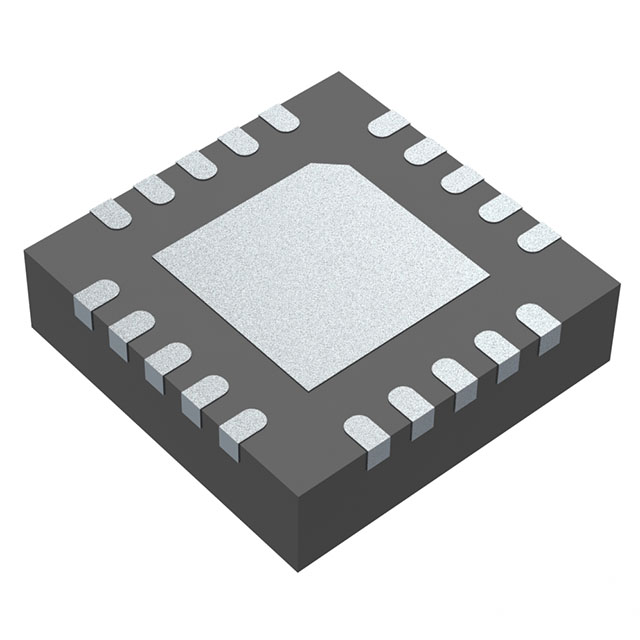

AK1547
IC PLL RF FREQ SYNTHESIZER 20QFNManufacturer: Asahi Kasei Microdevices/AKM
Categories: Clock Generators, PLLs, Frequency Synthesizers
Quality Control: Learn More
Asahi Kasei Microdevices/AKM AK1547 is a 4GHz RF frequency synthesizer, part of the PLL clock generator family. This single-circuit device features a 2:1 input-to-output ratio and operates from a 2.7V to 5.5V supply. The AK1547 utilizes a 20-QFN (3x3) exposed pad package, suitable for surface mount applications. It supports differential input and output. The synthesizer is designed for operation in demanding environments, with an operating temperature range of -40°C to 85°C. This component finds application in wireless communication systems, test and measurement equipment, and other high-frequency signal generation applications. The AK1547 is supplied in tape and reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Output | Clock |
| Frequency - Max | 4GHz |
| Input | Clock |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.7V ~ 5.5V |
| Ratio - Input:Output | 2:1 |
| Differential - Input:Output | Yes/No |
| Supplier Device Package | 20-QFN (3x3) |
| PLL | Yes |
| Divider/Multiplier | Yes/No |
| Number of Circuits | 1 |
| Programmable | Not Verified |
