AK9240NK
IC DAC/AUDIOManufacturer: Asahi Kasei Microdevices/AKM
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Asahi Kasei Microdevices/AKM AK9240NK is a 12-bit, 2-channel SAR Analog to Digital Converter. This device features a programmable gain amplifier (PGA) and operates with analog and digital supply voltages ranging from 2.7V to 5.5V. Its input type is differential, and it supports a sampling rate of up to 1MSPS. The AK9240NK communicates via an SPI data interface and is housed in a 20-QFN (3x3) surface-mount package. This component is suitable for applications in consumer electronics and industrial automation. It is supplied in bulk packaging and has an operating temperature range of -40°C to 105°C.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | PGA |
| Packaging | Bulk |

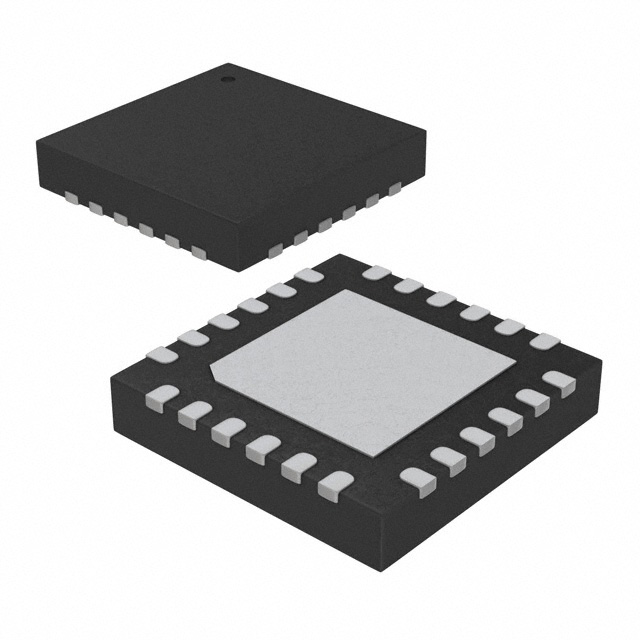

| Package / Case | 20-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | PGA-ADC |
| Data Interface | SPI |
| Reference Type | - |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Sampling Rate (Per Second) | 1M |
| Input Type | Differential |
| Number of Inputs | 2 |
| Supplier Device Package | 20-QFN (3x3) |
| Architecture | SAR |
| Ratio - S/H:ADC | 0:2 |
| Number of A/D Converters | 2 |
