AK5374EN
IC ADC/AUDIO 24BIT 48K 36QFNManufacturer: Asahi Kasei Microdevices/AKM
Categories: ADCs/DACs - Special Purpose
Quality Control: Learn More

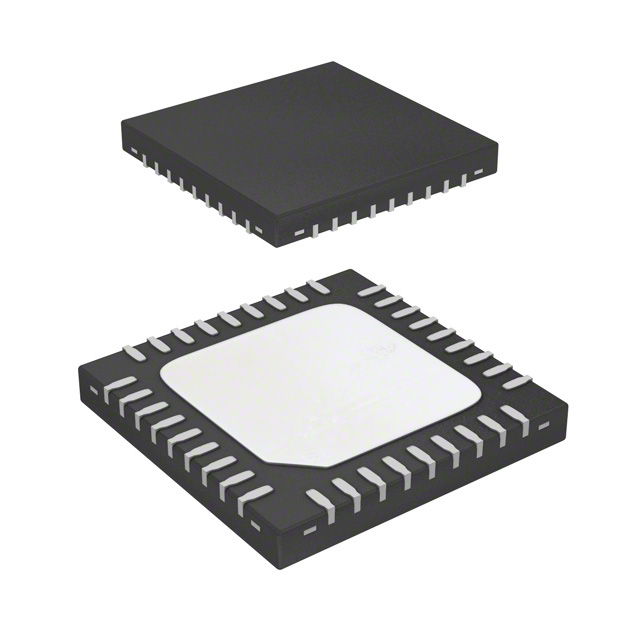

The Asahi Kasei Microdevices/AKM AK5374EN is a 24-bit, 48kHz audio Analog-to-Digital Converter (ADC) featuring a USB data interface. This surface-mount component, housed in a 36-QFN (5x5) package, offers two channels for audio acquisition. It operates within a voltage supply range of 3V to 3.6V, with separate analog and digital voltage supply sources. The AK5374EN is designed for applications requiring high-fidelity audio conversion, commonly found in consumer electronics, professional audio equipment, and automotive systems. The device is supplied on a tape and reel for efficient automated assembly.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 36-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Type | ADC, Audio |
| Data Interface | USB |
| Operating Temperature | -10°C ~ 70°C |
| Voltage - Supply | 3V ~ 3.6V |
| Sampling Rate (Per Second) | 48k |
| Resolution (Bits) | 24 b |
| Voltage Supply Source | Analog and Digital |
| Supplier Device Package | 36-QFN (5x5) |
| Number of Channels | 2 |
