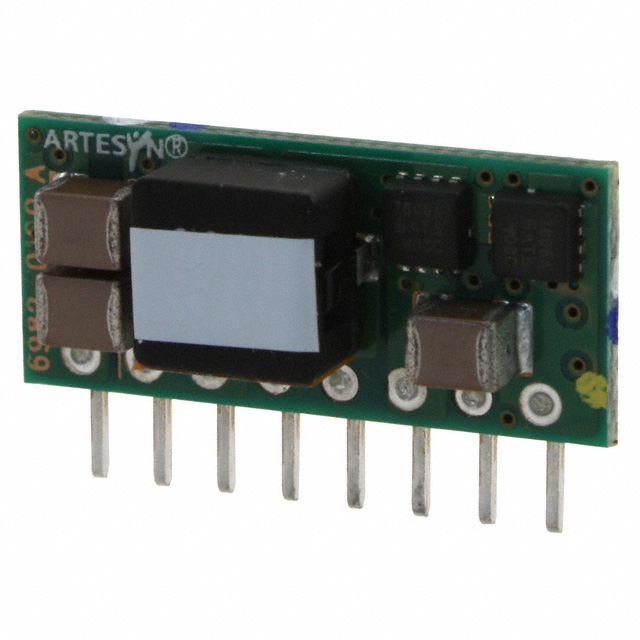

PTV12010WAD
DC DC CONVERTER 1.2-5.5V 44WManufacturer: ARTESYN / Advanced Energy
Categories: DC DC Converters
Quality Control: Learn More
Non-Isolated PoL Module DC DC Converter 1 Output 1.2 ~ 5.5V 8A 10.8V - 13.2V Input
Additional Information
Series: PTV12010 (44W)RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Remote On/Off, OCP, UVLO |
| Packaging | Tray |
| Package / Case | 8-SIP Module |
| Size / Dimension | 0.90"" L x 0.33"" W x 0.40"" H (22.9mm x 8.4mm x 10.2mm) |
| Mounting Type | Through Hole |
| Type | Non-Isolated PoL Module |
| Operating Temperature | -40°C ~ 85°C |
| Applications | ITE (Commercial) |
| Voltage - Input (Max) | 13.2V |
| Efficiency | 92% |
| Current - Output (Max) | 8A |
| Voltage - Input (Min) | 10.8V |
| Voltage - Output 1 | 1.2 ~ 5.5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Power (Watts) | 44 W |
| Number of Outputs | 1 |
