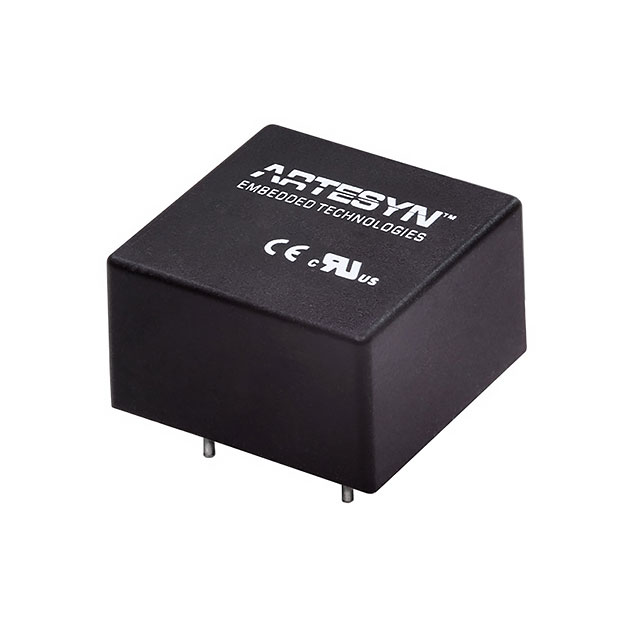

AYA01B12-L
DC DC CONVERTER 12V 3WManufacturer: ARTESYN / Advanced Energy
Categories: DC DC Converters
Quality Control: Learn More
Isolated Module DC DC Converter 1 Output 12V 250mA 9V - 18V Input
Additional Information
Series: AYA (3W)RoHS Status: RoHS CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | SCP |
| Packaging | Tube |
| Package / Case | 7-DIP Module, 4 Leads |
| Size / Dimension | 0.55"" L x 0.55"" W x 0.31"" H (14.0mm x 14.0mm x 8.0mm) |
| Mounting Type | Through Hole |
| Type | Isolated Module |
| Operating Temperature | -40°C ~ 85°C |
| Applications | ITE (Commercial) |
| Voltage - Input (Max) | 18V |
| Efficiency | 87% |
| Current - Output (Max) | 250mA |
| Voltage - Input (Min) | 9V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Power (Watts) | 3 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 1.5 kV |
