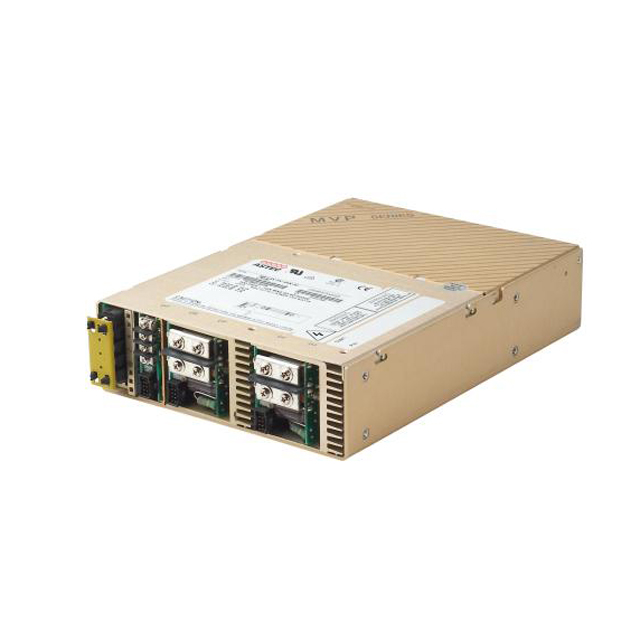

MP4-1Q-LLE-00
AC/DC CNVRTR 24V 2X12V 5V 600WManufacturer: ARTESYN / Advanced Energy
Categories: AC DC Converters
Quality Control: Learn More
Enclosed AC DC Converters 4 Output 24V 12V 12V 5V 85 ~ 264 VAC, 120 ~ 300 VDC Input
Additional Information
Series: MP4 (600W)RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Power (Watts) | 600W |
| Features | Adjustable Output, PFC, Remote On/Off, Universal Input |
| Packaging | Bulk |
| Size / Dimension | 10.00"" L x 5.00"" W x 2.50"" H (254.0mm x 127.0mm x 63.5mm) |
| Mounting Type | Chassis Mount |
| Voltage - Input | 85 ~ 264 VAC, 120 ~ 300 VDC |
| Type | Enclosed |
| Operating Temperature | -40°C ~ 70°C (With Derating) |
| Applications | ITE (Commercial), Medical |
| Approval Agency | CB, CE, CSA, UL, VDE |
| Efficiency | 85% |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | 12V |
| Voltage - Output 3 | 12V |
| Voltage - Output 4 | 5V |
| Number of Outputs | 4 |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 8.5 A |
| Current - Output 2 | 1 A |
| Current - Output 3 | 1 A |
| Current - Output 4 | 2 A |
Request a Quote
