QS103XXHB220
INDICATOR 10MM FIXED HI BLU 220VManufacturer: APEM Inc.
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

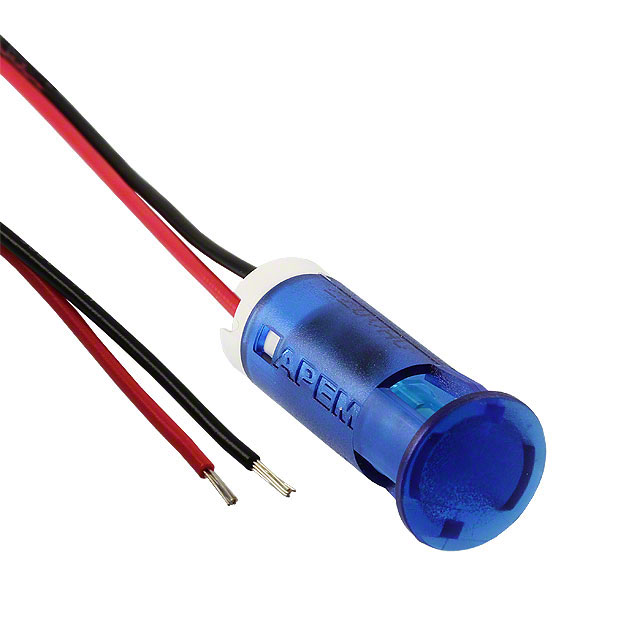

APEM Inc. QS Series LED Panel Indicator, part number QS103XXHB220, is a robust component designed for demanding applications. This panel mount indicator features a 10mm round cutout and a diffused blue lens, providing a consistent and visible light output. The unit operates at 220V AC with a typical current draw of 3mA, delivering a millicandela rating of 1600mcd. Its 45° viewing angle ensures clear indication from various positions. Termination is via pre-attached wire leads, extending 7.87 inches (200.00mm) for flexible installation. This component finds application in industrial control systems, power distribution units, and general equipment status indication across multiple sectors.
Additional Information
Series: QSRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Current | 3mA |
| Voltage | 220V |
| Type | LED |
| Millicandela Rating | 1600mcd |
| Termination Style | Wire Leads - 7.87"" (200.00mm) |
| Lens Color | Blue |
| Viewing Angle | 45° |
| Ingress Protection | - |
| Ratings | AC |
| Panel Cutout Dimensions | 0.394"" (10.00mm) |
| Wavelength - Peak | - |
| Lens Transparency | Diffused |
| Lamp Color | Blue |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | 12.00mm Dia |
