Q8F1CXXG02
LED INDICATOR 8MM GREEN FLUSHManufacturer: APEM Inc.
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

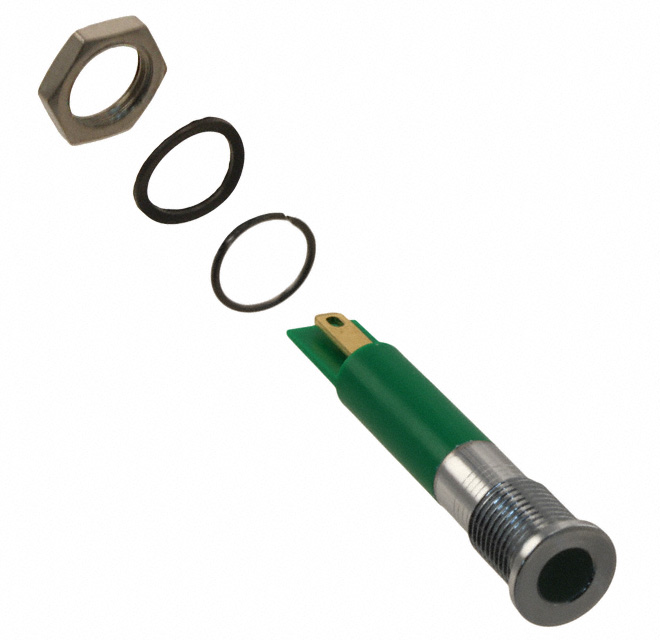

APEM Inc. Q8 Series LED Panel Indicator, part number Q8F1CXXG02, is an 8mm round green diffused LED with a flat top lens. This component features a 100° viewing angle and a typical forward voltage of 2V at a maximum current of 20mA. The indicator is designed for panel mounting with a 0.31 inch (7.87mm) round cutout and utilizes solder lug terminations for secure connections. Its typical millicandela rating is 8mcd. This component is commonly utilized in industrial control, instrumentation, and automation applications where reliable visual status indication is critical.
Additional Information
Series: Q8RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Current | 20mA |
| Voltage | 2V |
| Type | LED |
| Millicandela Rating | 8mcd |
| Termination Style | Solder Lug |
| Lens Color | Green |
| Viewing Angle | 100° |
| Ingress Protection | - |
| Ratings | Vf (Typ), If (Max) |
| Panel Cutout Dimensions | 0.31"" (7.87mm) |
| Wavelength - Peak | - |
| Lens Transparency | Diffused |
| Lamp Color | Green |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | 5mm, T-1 3/4 |
