Q6R3CYYRG12E
LED PANEL MOUNT INDICATOR RD/GRManufacturer: APEM Inc.
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

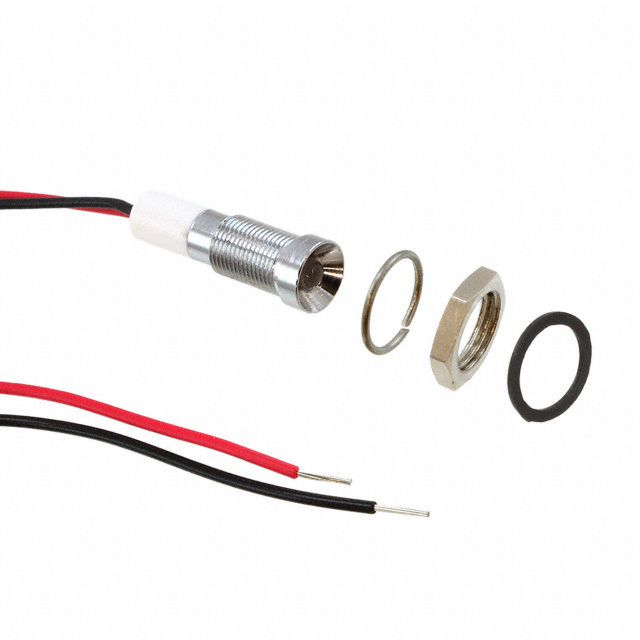

LED Panel Indicator Green, Red Diffused 100° 12V Green, 12V Red 20mA Green, 20mA Red Wire Leads - 7.87"" (200.00mm)
Additional Information
Series: Q6RoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Current | 20mA Green, 20mA Red |
| Voltage | 12V Green, 12V Red |
| Type | LED |
| Millicandela Rating | 15mcd Green, 20mcd Red |
| Termination Style | Wire Leads - 7.87"" (200.00mm) |
| Lens Color | - |
| Viewing Angle | 100° |
| Ingress Protection | IP67 |
| Ratings | Vf (Typ), If (Max) |
| Panel Cutout Dimensions | 0.24"" (6.10mm) |
| Wavelength - Peak | - |
| Lens Transparency | Diffused |
| Lamp Color | Green, Red |
| Panel Cutout Shape | Round |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
Request a Quote
