Q6F3CXXR12E
LED PANEL MOUNT INDICATOR REDManufacturer: APEM Inc.
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

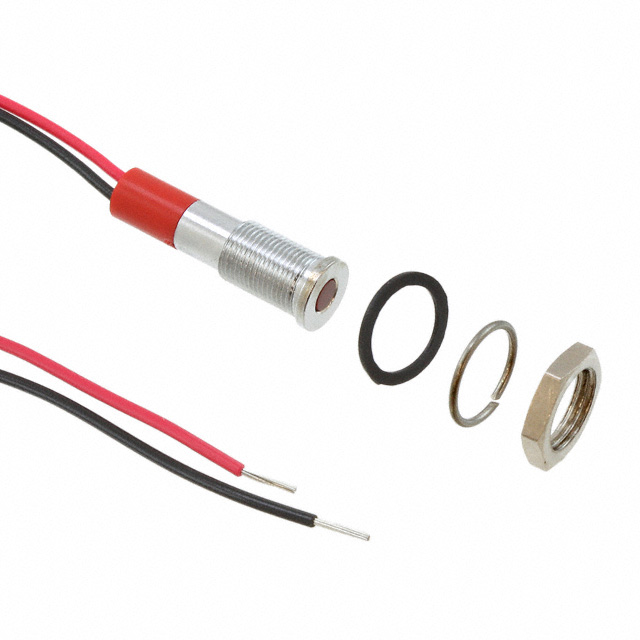

APEM Inc. Q6 Series LED Panel Mount Indicator, part number Q6F3CXXR12E, features a red diffused lens with a 100° viewing angle. This component operates at 12V and draws 20mA, providing a typical millicandela rating of 10mcd. The unit is designed for panel mounting with a 0.24" (6.10mm) round cutout and terminates with 7.87" (200.00mm) wire leads. With an IP67 ingress protection rating, it is suitable for demanding environments found in industrial automation, control panels, and instrumentation applications. The diffused lens ensures consistent light output.
Additional Information
Series: Q6RoHS Status: ROHS3 CompliantManufacturer Lead Time: 27 week(s)Product Status: ActivePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Current | 20mA |
| Voltage | 12V |
| Type | LED |
| Millicandela Rating | 10mcd |
| Termination Style | Wire Leads - 7.87"" (200.00mm) |
| Lens Color | Red |
| Viewing Angle | 100° |
| Ingress Protection | IP67 |
| Ratings | DC |
| Panel Cutout Dimensions | 0.24"" (6.10mm) |
| Wavelength - Peak | - |
| Lens Transparency | Diffused |
| Lamp Color | Red |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | 3mm, T-1 |
