Q14P5CZZRGB12ECA
PROMCHRMBEZ RGB 12VDC IP67Manufacturer: APEM Inc.
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

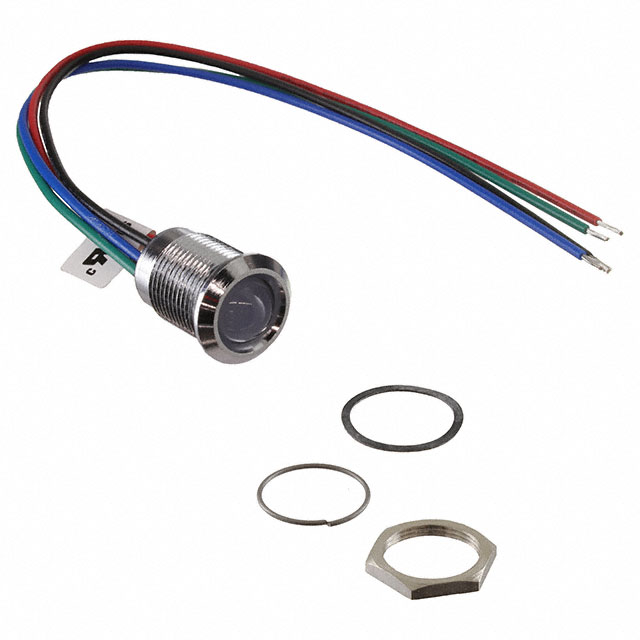

LED Panel Indicator Red, Green, Blue (RGB) Diffused 100° 12V 20mA Red, 20mA Green, 20mA Blue Wire Leads - 7.87"" (200.00mm)
Additional Information
Series: Q14RoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Current | 20mA Red, 20mA Green, 20mA Blue |
| Voltage | 12V |
| Type | LED |
| Millicandela Rating | 220mcd Red, 500mcd Green, 100mcd Blue |
| Termination Style | Wire Leads - 7.87"" (200.00mm) |
| Lens Color | Clear |
| Viewing Angle | 100° |
| Ingress Protection | IP67 |
| Ratings | DC |
| Panel Cutout Dimensions | 0.55"" (14.00mm) |
| Wavelength - Peak | - |
| Lens Transparency | Diffused |
| Lamp Color | Red, Green, Blue (RGB) |
| Panel Cutout Shape | Round |
| Lens Style | Round with Domed Top |
| Lens Size | - |
