Q14P1CZZRYG02E

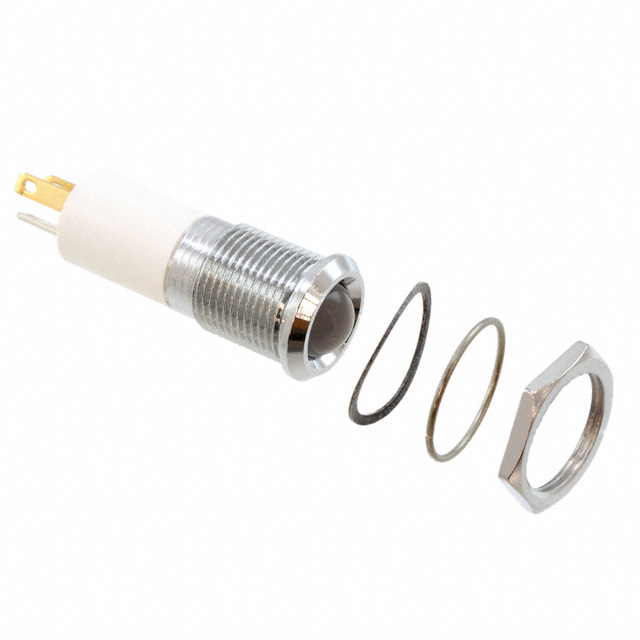

LED INDICATOR 14MM PROMINENT TRIManufacturer: APEM Inc.
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More
LED Panel Indicator Green, Red, Yellow Diffused 100° 2V Green, 2V Red, 2V Yellow 20mA Green, 20mA Red, 20mA Yellow Quick Connect - 0.110"" (2.8mm)
Additional Information
Series: Q14RoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Current | 20mA Green, 20mA Red, 20mA Yellow |
| Voltage | 2V Green, 2V Red, 2V Yellow |
| Type | LED |
| Millicandela Rating | 50mcd Green, 80mcd Red, 50mcd Yellow |
| Termination Style | Quick Connect - 0.110"" (2.8mm) |
| Lens Color | - |
| Viewing Angle | 100° |
| Ingress Protection | IP67 |
| Ratings | Vf (Typ), If (Max) |
| Panel Cutout Dimensions | 0.55"" (13.97mm) |
| Wavelength - Peak | - |
| Lens Transparency | Diffused |
| Lamp Color | Green, Red, Yellow |
| Panel Cutout Shape | Round |
| Lens Style | Round with Domed Top |
| Lens Size | 10.00mm Dia |
