Q14F5BXXHG24E
LED INDICATOR 14MM FLUSH BLACK HManufacturer: APEM Inc.
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

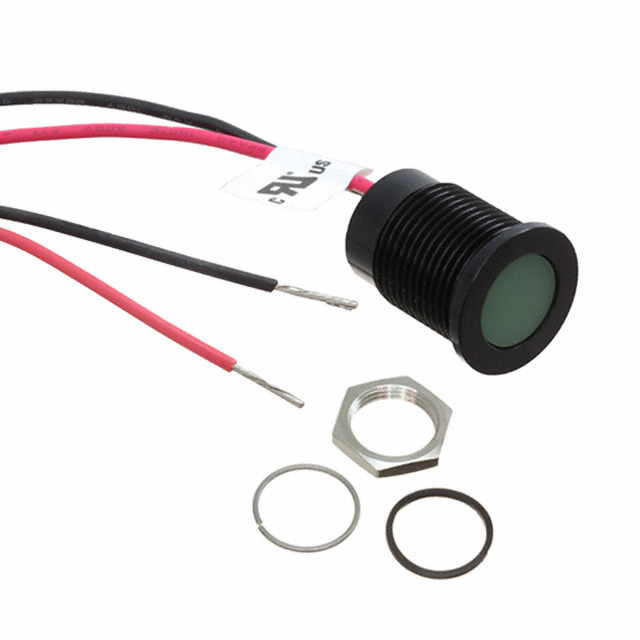

The APEM Inc. Q14 series Q14F5BXXHG24E is a panel mount LED indicator designed for robust operation. This unit features a 14mm round panel cutout, a flush black housing, and a 24V DC rating with a 20mA current draw. The diffused green lens provides a clear visual indication with a millicandela rating of 250mcd. Terminated with 7.87-inch (200mm) wire leads, it offers flexible installation. The indicator boasts an IP67 ingress protection rating, making it suitable for demanding environments in industrial automation, control panels, and medical equipment.
Additional Information
Series: Q14RoHS Status: ROHS3 CompliantManufacturer Lead Time: 27 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Current | 20mA |
| Voltage | 24V |
| Type | LED |
| Millicandela Rating | 250mcd |
| Termination Style | Wire Leads - 7.87"" (200.00mm) |
| Lens Color | Green |
| Viewing Angle | - |
| Ingress Protection | IP67 |
| Ratings | DC |
| Panel Cutout Dimensions | 0.55"" (14.00mm) |
| Wavelength - Peak | - |
| Lens Transparency | Diffused |
| Lamp Color | Green |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | 16.00mm Dia |
